Description:100% brand new and high quality!
The module has four independent keys, used to set the frequency and duty cycle, support touch (increase or decrease a unit) and long press (fast increase or decrease), set the parameters automatically save, power down not lost.
LCD display frequency and duty cycle, very clear, PWM output can be set to the frequency and duty cycle.
Wide frequency range, high .
Serial communication, TTL level.
The scope of application:
1. Used as a square wave signal generator, generate square wave signal for experimental development and use.
2. Used to generate a square wave signal that controls the motor driver.
3. Generate adjustable pulse for MCU use.
4. generate adjustable pulse, control the relevant circuit (PWM dimming speed and other applications).
5. serial control (single-chip TTL level communication).
Specifications:
Item type: Signal Generator Module
Working voltage: 3.3 ~ 30V
Frequency range: 1Hz ~ 150KHz
Frequency accuracy: the accuracy in each range is about 2%
Signal load capacity: the output current can be about 5 ~ 30ma
Output amplitude: PWM amplitude equal to the supply voltage
Ambient temperature: -20 ~ +70 ℃
Size: about 52x32mm/2.05x1.26inch
Color: As shown.
Quantity: 1pc.
Package includes:

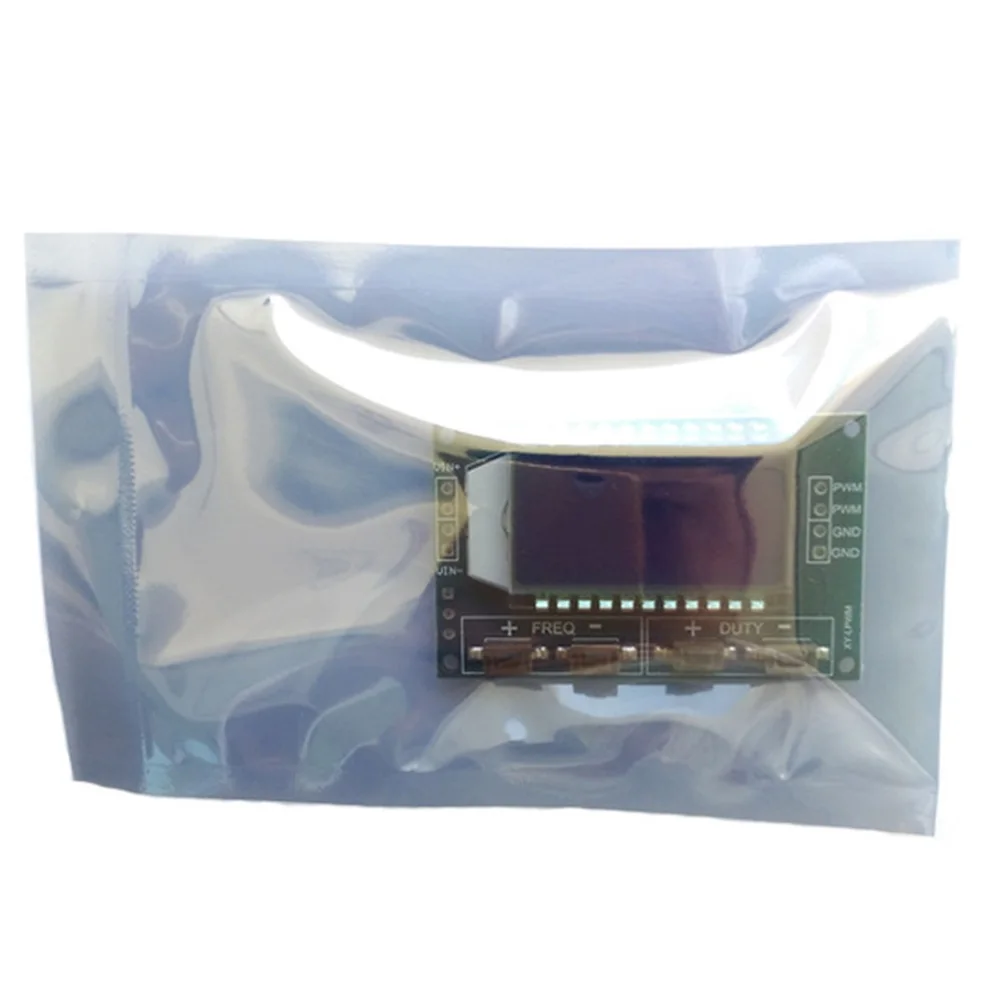

1* Signal Generator Module
Notes:
Transition: 1cm=10mm=0.39inch
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
