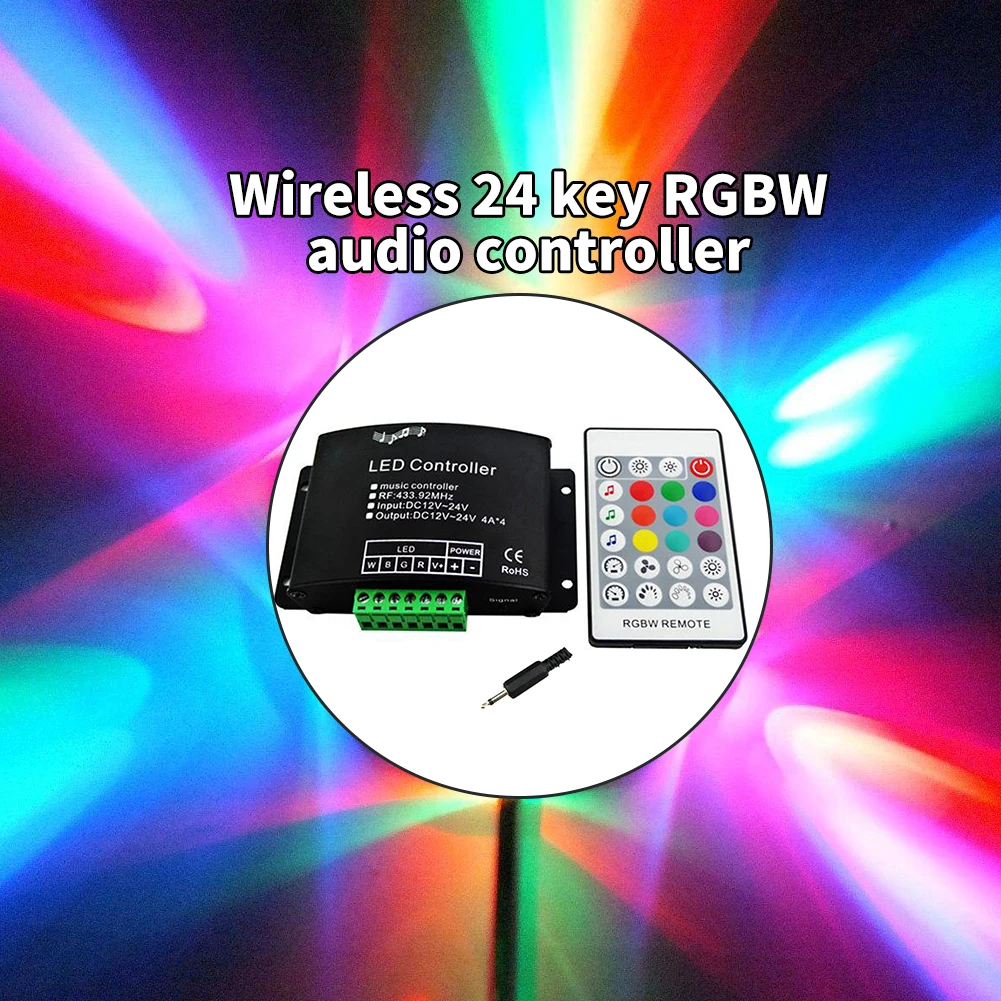

24 клавиши 4 канала музыка Активированный Мини многофункциональный домашний светодиодный аудио контроллер беспроводной PWM RGBW звуковой датчик дистанционного управления

Описание

Description:
It adopts RF wireless remote control mode, with remote control distance, no directionality, and can penetrate certain thickness obstructions.
Powered-off memory storage function, the power change mode will be retained every time the power is turned off.
RGB and W can be controlled independently, without affecting each other, and W only has static mode.
The controller has 17 modes, including 10 static colors, 4 dynamic changes and 3 music modes.
In the audio mode, the sensitivity can be adjusted by the black gear or the remote control.
Specification:
Controller color: black
Working temperature: -20~60℃
Controller supply voltage: DC12V-24V
Quiescent dissipation: < 1W
Channel: 4
Controller output voltage: DC12-24V
Controller output current: ≤ 4A(each channel)
Controller output power: ≤ 192W(12V), ≤ 384W(24V)
Received frequency: 433.92MHz
PWM frequency: 400Hz
Remote control method: RF
Remote control distance: ≤ 20m
Output gray: 256 levels (with continuous reception)
Speed gear: 100 levels(with continuous reception)
Connecting mode: common anode
Controller size: about 10.8x6.3x2.8cm
Controller modes: 17
Remote control working temperature: -20~60℃
Remote control supply voltage: 3V
Standby current: 3.3μA
Emission current: 7mA
Standby power: 9.9μW
Emission power: 21mW
Remote control size: about 11.3x5.5x0.7cm
RF wireless control distance: ≤ 20m
Emission frequency: 433.92Mhz
Remote control battery: 1 pc x CR2032 button battery(not included)
Package included:
1 pc x LED controller
1 pc x remote control
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow slight deviation for the measurement data and make sure you do not mind before ordering.
3. The wireless remote control of conventional products is universal. If one-to-one control is required, it needs to be encoded.
