High power, maximum 3.5A drive current .
Professional design, two-stage signal processing, super anti-jamming.
1-1/16 microstep setting - Higher accuracy .
Adjustable drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors .
Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment .On board current switching - Power output can be set according to specific user requirement .
Model Number: Stepper Motor Drvier
Power Supply: DC
Motor Type: Stepper Motor
Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
4 channel inputs interface- Can be used for XYZ limit and emergency stop .
Bipolar constant current chopper drive with non-resonant region .
Full closed-type optical isolation to protect the user's computer and equipment
Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop.
Universal architecture - Supports most parallel software MACH3, KCAM4, EMC2 etc.
Please Note
Please connect the power supply to the power switch of DC 12-36 V
Voltage Selection:
Greater than 12-16V DC power supply for Nema 17 stepper motors
Greater than 16-24V DC power supply for Nema 23 stepper motors
Greater than 24-36V DC power supply for Nema 34 stepper motors
The power output of 12V shall be applied to the radiator fan of 12V
Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
Suitable for unipolar or bipolar stepper motors.
Voltage regulated spindle speed controlled by parallel interface as function of supply voltage.
colour:blue
Material:plastic
Package Contents:

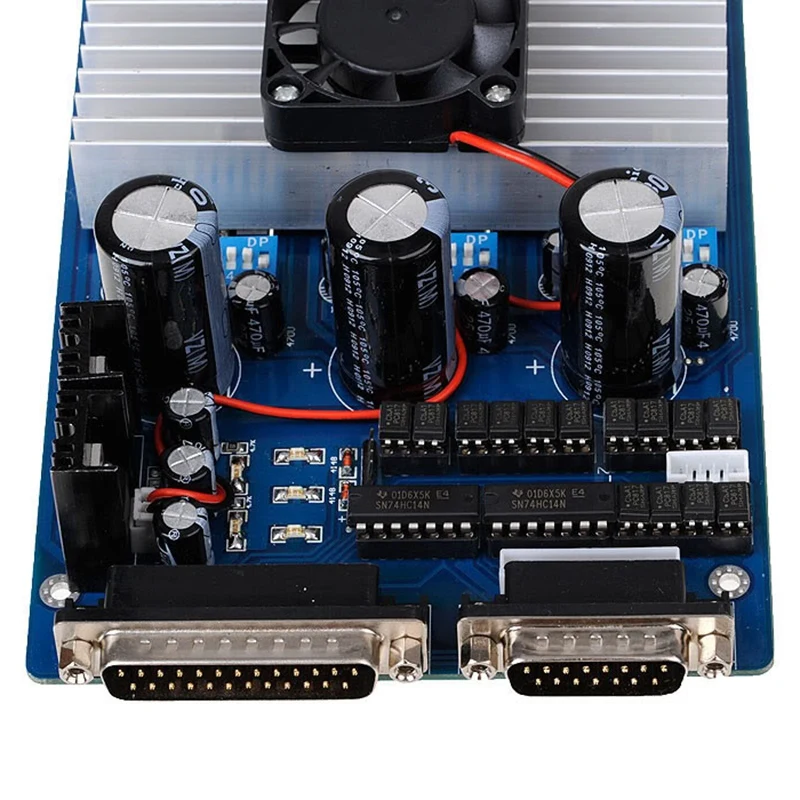

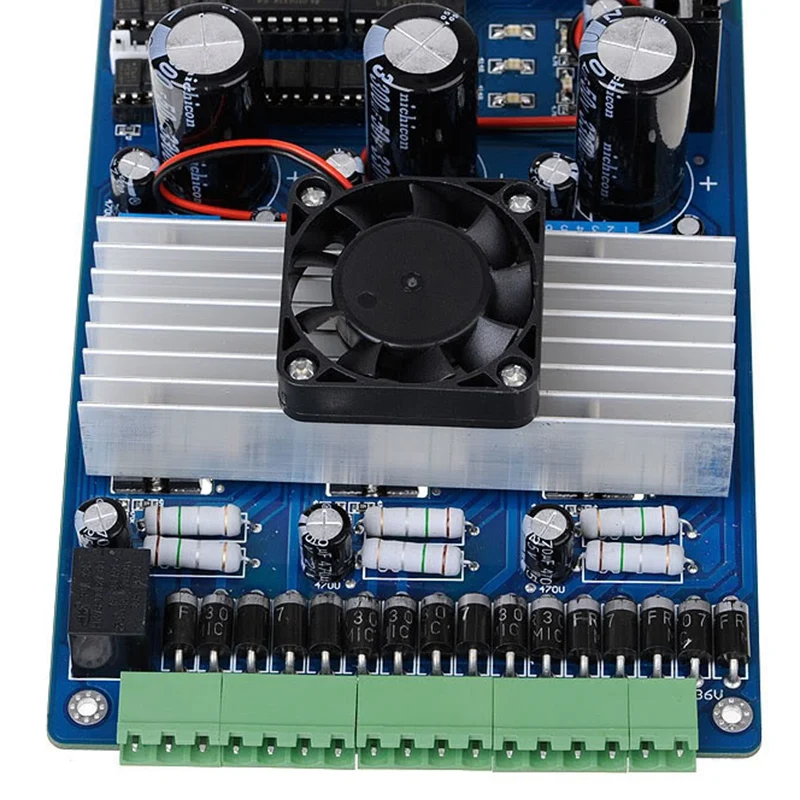

1 * 3-axis TB6560 stepper motor driver
1 * DB25 parallel cable
5 * wire connector
1 * CD software
Only the above package content, other products are not included.
