Описание

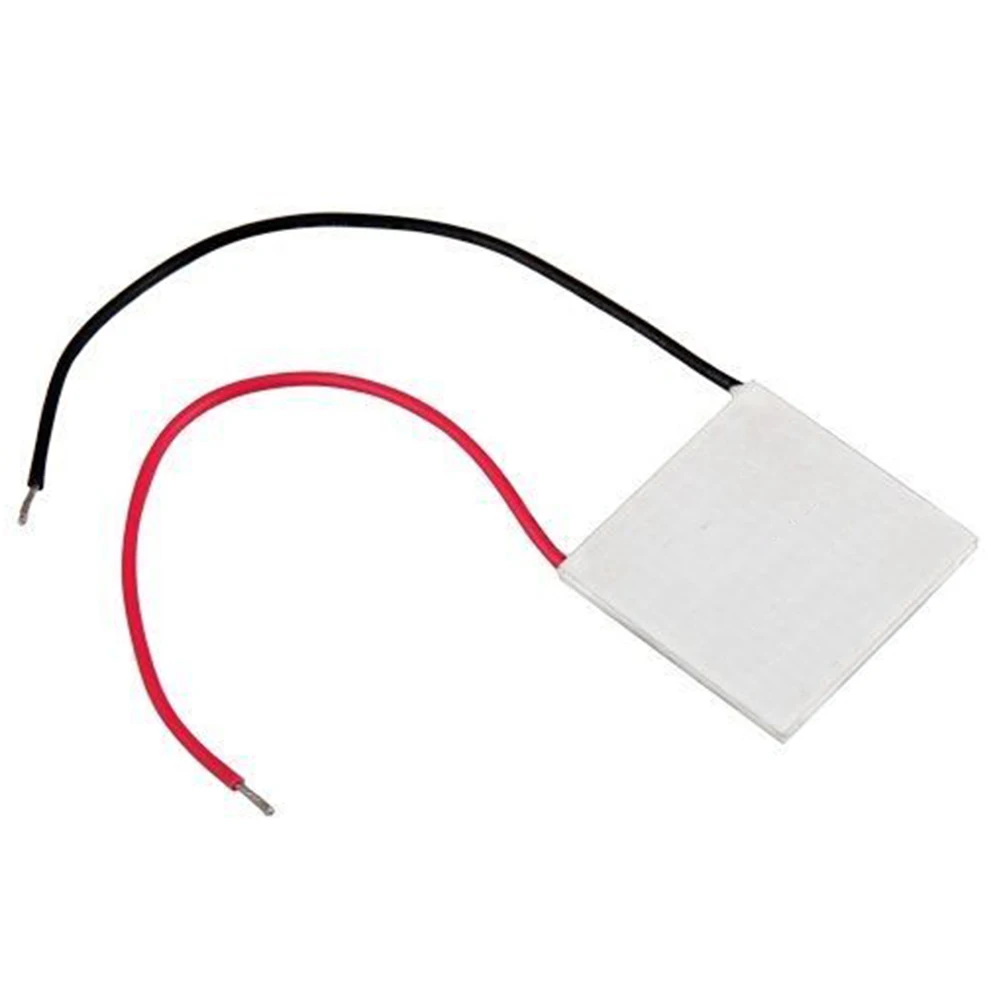

40*40 мм термоэлектрический прочный TEC1-12710 силиконовый Пельтье Модуль охладитель легкий 154 Вт

Description:
100% brand new and high quality!
Durable enough for your using.
There is no vibration, noise, long life and easy installation.
Testing which side is hot without heat sink can be done by connecting +12V or less and disconnect very fast in less then 2 seconds; otherwise, the tile will be burnt inside.
It can be used in air conditioners, hot and cold dual-use boxes, water dispensers, e-mail, etc.
Heat side requires heat sink all the time.
Specification:
Chip model: TEC1-12710
Material: Silicone rubber
Dimensions: 40*40*3.4mm component logarithm 127
Wire size: Lead length 300±5mm RV standard wire single head 5mm tinned
Internal resistance: 1.2~1.5Ω (ambient temperature 23±1°C, 1kHZ test)
Maximum temperature difference: ΔTmax ( = 0) 60 ° C or more.
Working current: Imax=10A (when 15Vmax voltage is started)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: max 92W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55 °C ~ 83 °C (excessive ambient temperature will directly affect cooling efficiency)
Pkaging process: Four weeks standard 704 silicone rubber seal
storage conditions: Ambient temperature -10 ° C ~ 40 ° C
Storage conditions: -40~60°C
Pkage:
1PC x Cooler
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
