Descriptions:

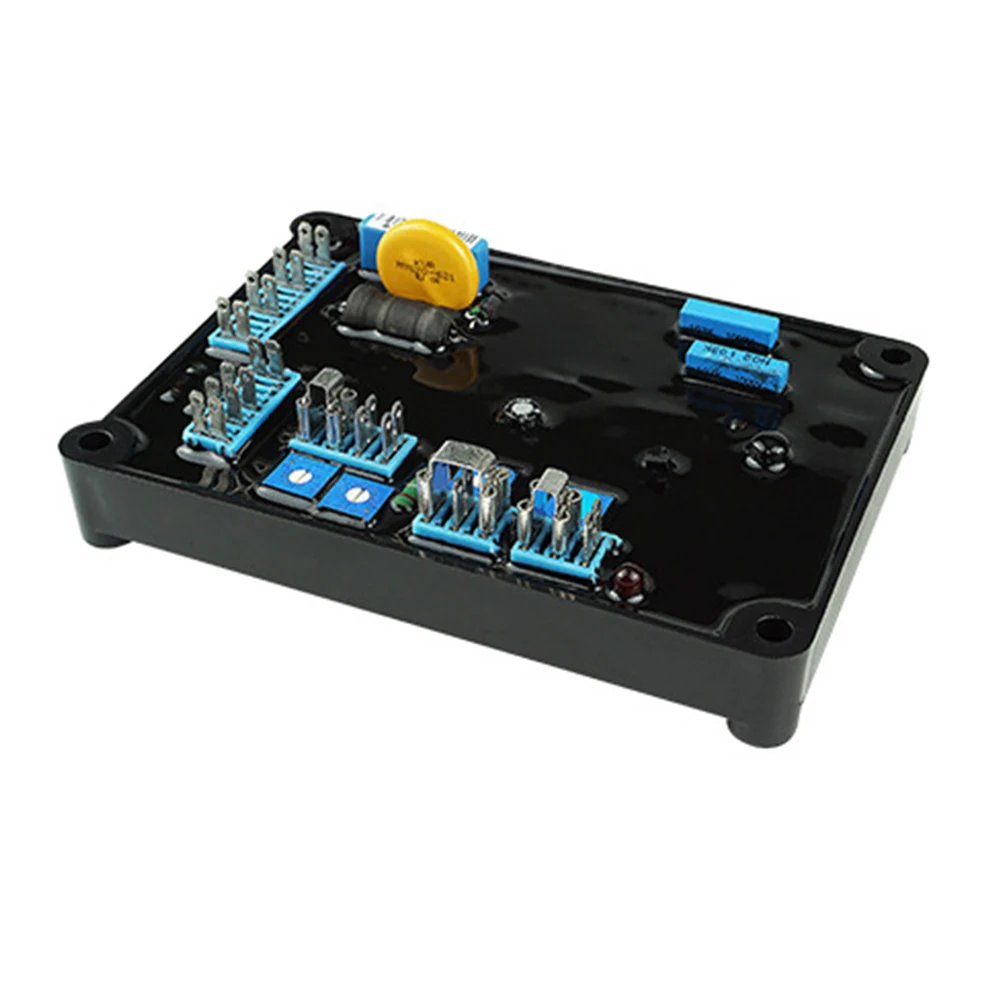

AS480 excitation generator voltage regulator board uses exciter from PMG, the voltage is stable.
The load is good, and it has the function of parallel machine. AS480 is suitable for PO/P1 series generators.
AS480 is a for Stanford generator AVR, this AVR voltage regulation rate is less than ±1.0%, single-phase 120/240V detection voltage is
selected across the copper, 50/60Hz is selected across the copper.
AS480 can be used in parallel connection group, can be set across jumper copper to match different power generators,
suitable for self-excitation type brush generators.
It has low frequency protection (UFRO) and slow voltage establishment function, and with LED indicating low frequency.
Specifications:
Material: plastic+metal
Color: as shown
Model: AS480
Detection and power input: 120 (95-132)/240 (190-264)V
Magnetic field output: 207V (maximum DC 90V when input)
Current: 4A continuous, 10A discontinuous for 10 seconds
Voltage regulation accuracy: <±1% RMS (engine speed within 4%)
Size: about 16x10.5x5.5cm (LxWxH)
Package included:
1pc x voltage regulator
1pc x English user manual
