Описание

Автомобильный ЖК-дисплей Ватт час Многофункциональный электромобиль амперметр вольтметр измеритель мощности измеритель емкости батареи беспроводной кулометр

Description:
100% brand new and high quality!
It can measure miscellaneous parameters such as DC voltage, current, power, charge and discharge capacity, watt-hour time.

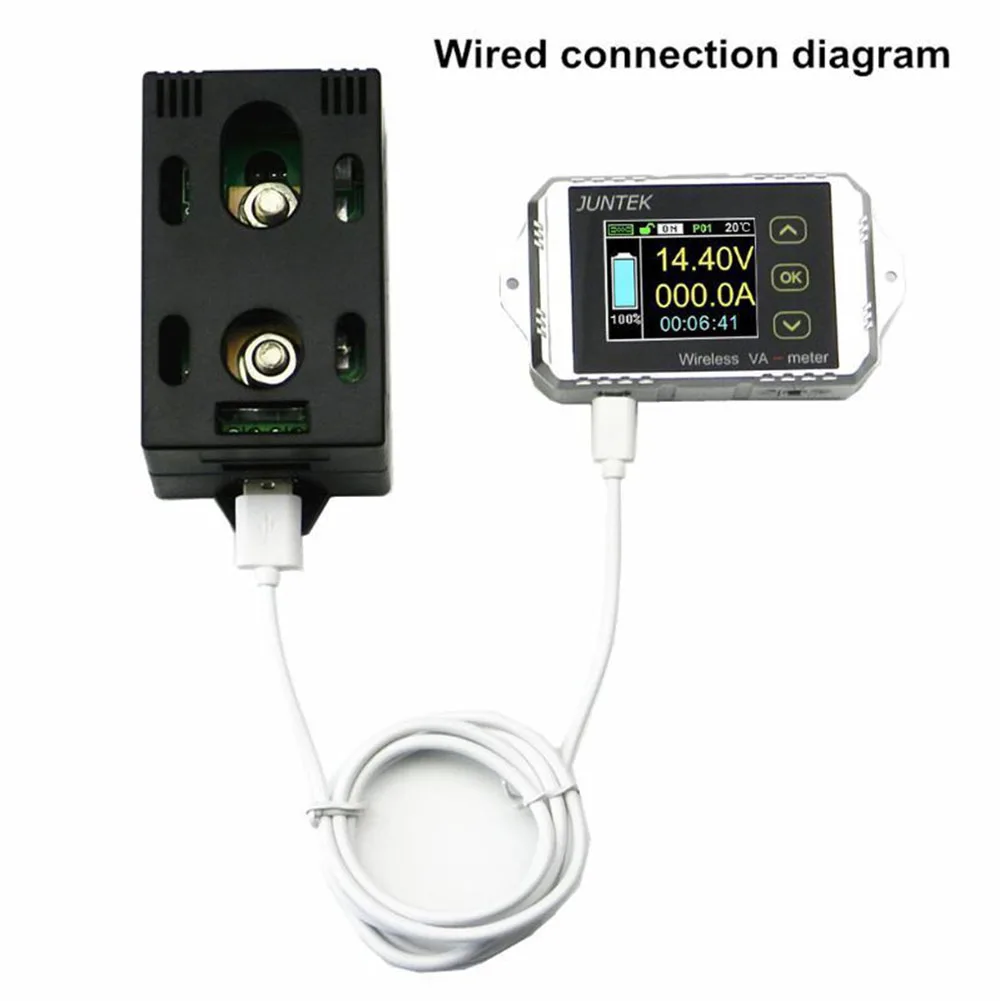

Both the display panel and the measurement module can be wired or wirelessly.
And temperatureand with over-current protection Protection, under-voltage protection, and limited protection and other protection functions.
The instrument can automatically identify the direction of the current, and the battery capacity can be monitored in real time.
The instrument uses TFT LCD display, display information is comprehensive, user-friendly and better interaction.
Specification:
Model: 30A, 50A, 100A, 200A, 300A
Color: black
Temperature measurement range: -20~120 degrees Celsius
Power measurement range: 0-200kW
Anshi measurement range: 0~2000KAH
Watt hour measurement range: 0~4000kWH
Time measurement range: 0~99 days
Communication channel range: A~Z
Voltage error: ±1%+2
Current error: ±2%+5
Sampling rate: 5/second
Communication distance: Open up to 10 meters
Dashboard power consumption: 0.4W
Display header power consumption: 0.5W（5V 0.1A）
Delay protection time: 0~10s
Size(approx): display board: 9.8*5.4*2.1 cm
measuring module: 11.35*5.72*4.88 cm

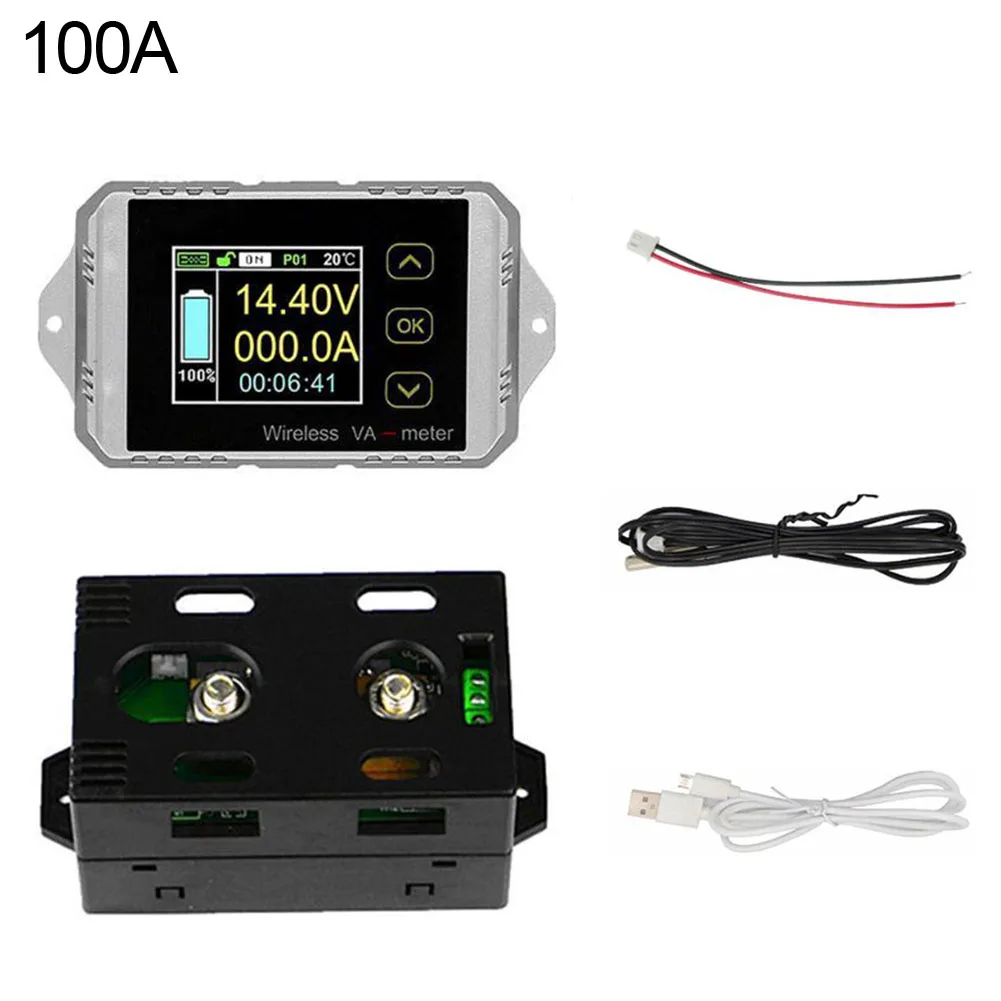

Package:
1 pc x Display board
1 pc x Measuring module
1 pc x Temperature Sensor
1 pc x USB data cable
1 pc x Instruction manual
1 pc x Red and black 2P line
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
