Описание
Упаковочный лист:

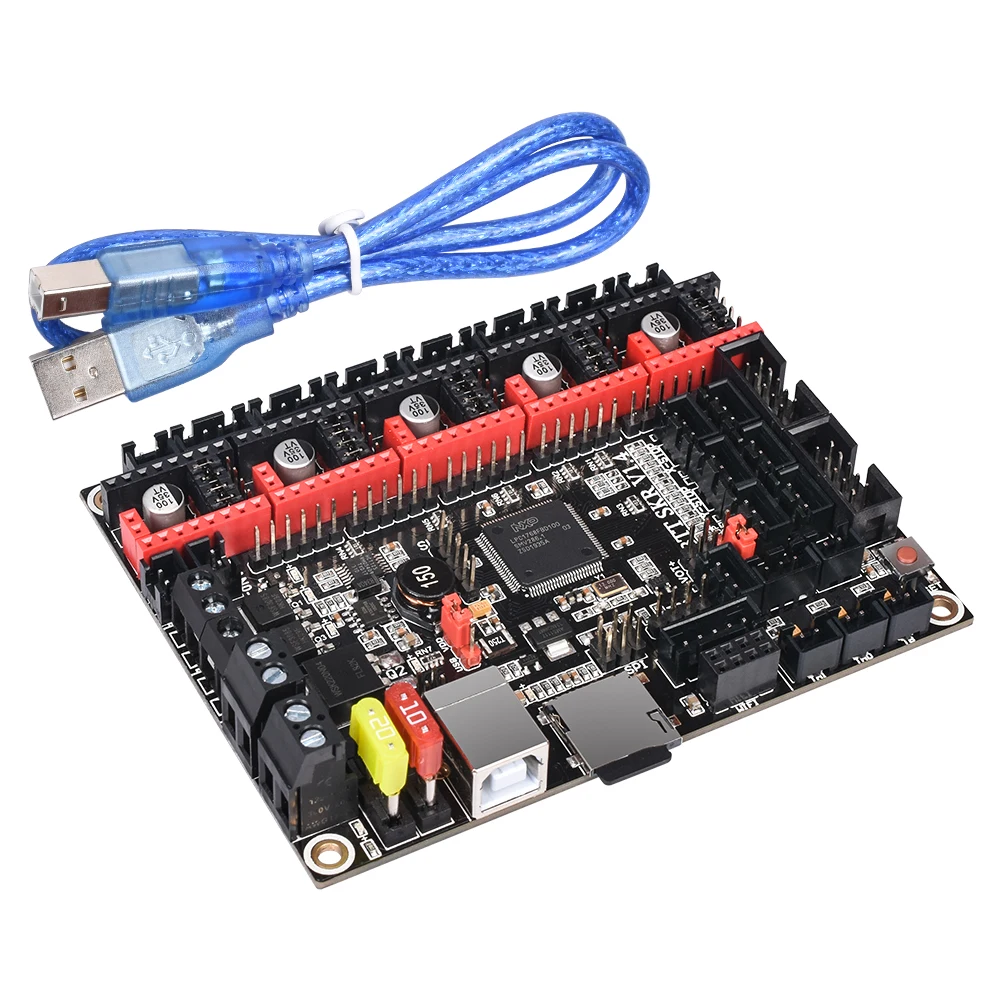

Тип 1: 1 шт. SKR V1.4/SKR V1.4 Turbo + 1 шт. TFT35 V3.0
Тип 2: 1 шт. SKR V1.4/SKR V1.4 Turbo + 1 шт. TFT35 V3.0 + 5 шт. драйверов
BTT SKR V1.4 и V1.4 Turbo данные:
https://github.com/bigtreetech/BIGTREETECH-SKR-V1.3/tree/master/BTT%20SKR%20V1.4
TFT35 V3.0 данные:
https://github.com/bigtreetech/BIGTREETECH-TFT35-V3.0
TFT35 V3.0 прошивки:
https://github.com/bigtreetech/BIGTREETECH-TouchScreenFirmware/tree/master/Copy%20to%20SD%20Card%20root%20directory%20to%20update%20-%20Unified%20Menu%20Material%20theme
Характеристики
- Бренд
- BIGTREETECH
- Тип товара
- Материнская плата
- Номер модели
- SKR V1.4 & V1.4 Turbo
- Product Name
- SKR V1.4 With Screen Kit
- Microprocessor
- ARM Cortex-M3 CPU
- SKR V1.4 Main Control Chip
- LPC1768
- SKR V1.4 Turbo Main Control Chip
- LPC1769
- Driver Working Mode
- SPI,UART,STEP/DIR
- Appearance Size
- 110*85mm
- Mounting Size
- 102*76mm
- Input Voltage
- DC12V-DC24V 5A-15A
- Logic Voltage
- DC 3.3V
- Support File Format
- G-code
- Supported Machine Architecture
- XYZ,Delta,Kossel,Ultimaker,Corexy
- Screen Appearance Size
- 110*58MM
- Screen Power Input
- DC5V
- Screen SD Card Logic Voltage
- 3.3V or 5V

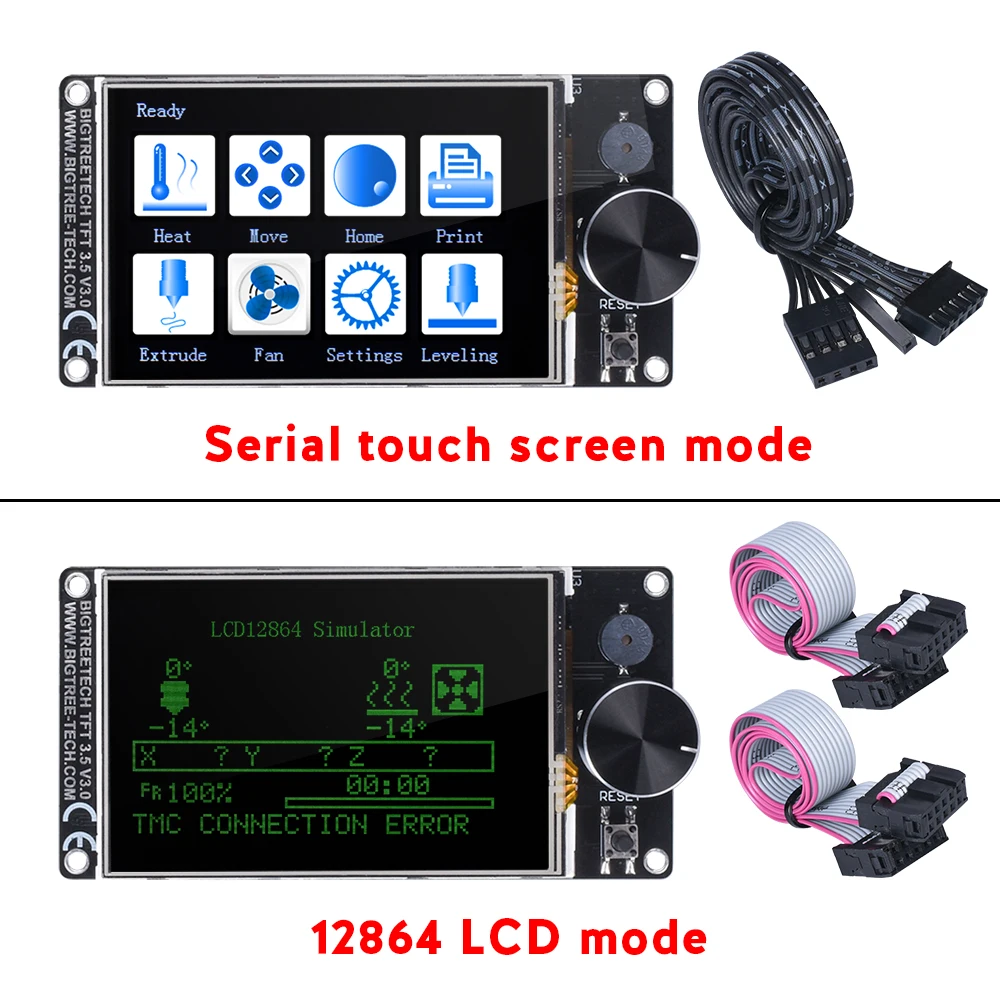

- Screen Working Mode
- Touch screen mode, 12864LCD mode
- Screen SD Card And U Disk
- Support touch screen mode
- Application
- 3D Printer
- Condition
- New 100%
