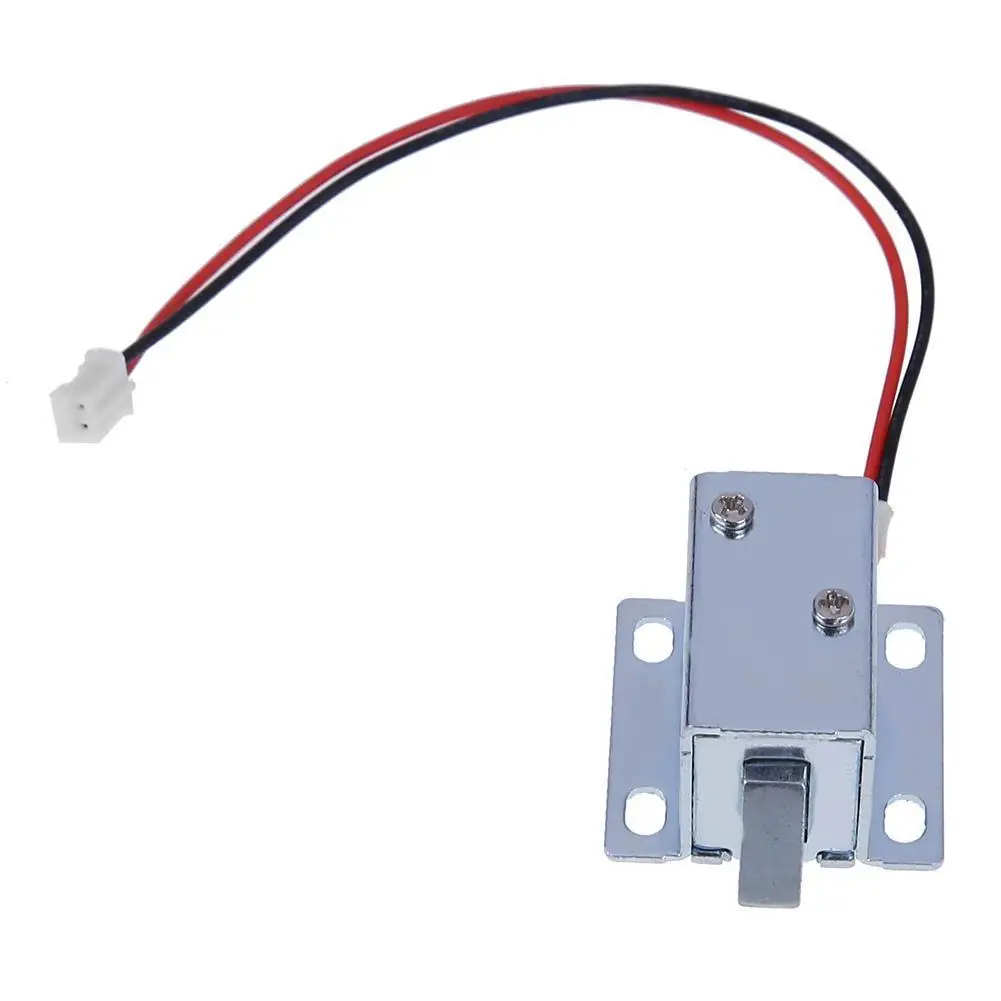

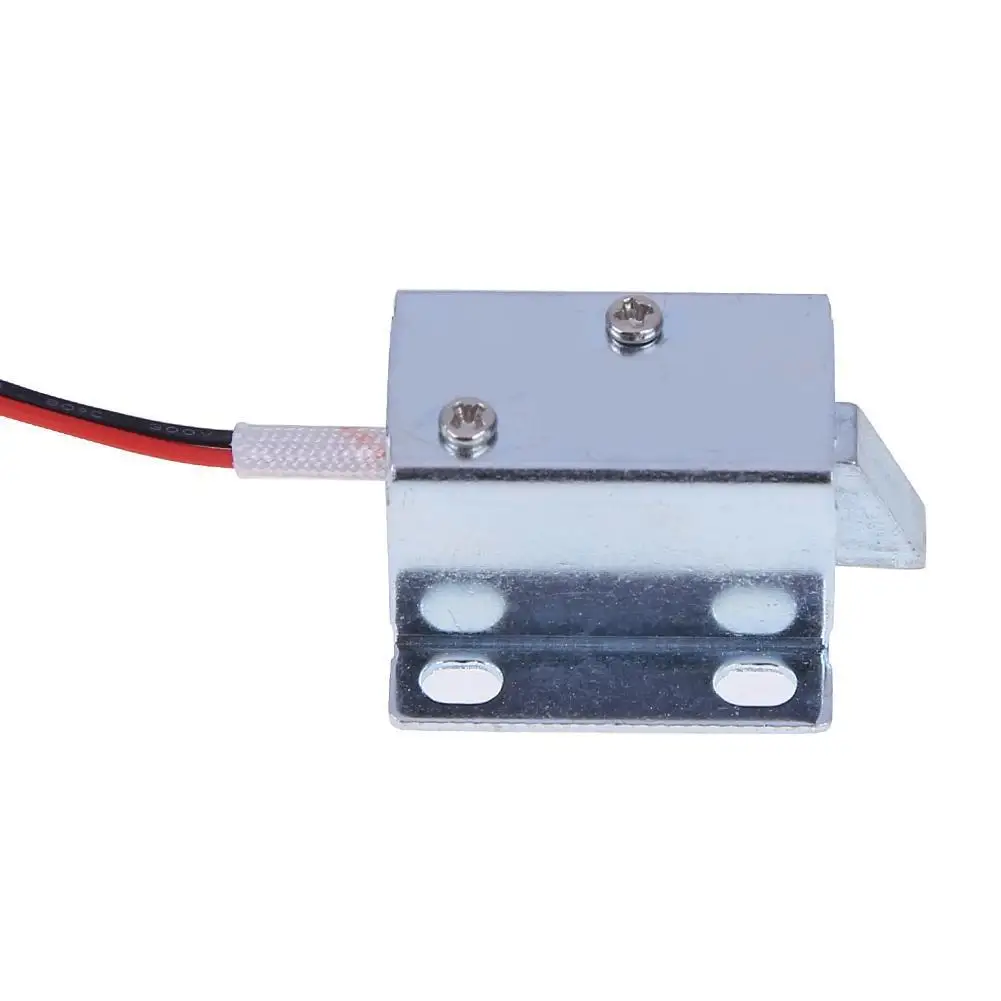

DC 6 В/12 в дверь прочный электронный Мини Железный антивибрационный ящик Универсальный шкаф электромагнитный симметричный дизайн

Specifications:
Product Name: smart cabinet electromagnetic lock
Product size: 3.3x2.7x1.7cm/1.3x1.06x0.67in
Product weight: 35g
Product category: 6V/12V universal
Scope of work:
Pull stroke: 0~4mm
Suction: 4mm≥80g(0.35A)kg
Retention: 0mm≥120g
Mode of operation: power on 90%, interval
Ambient temperature: -25 ~ 80 degree celsius
Relative humidity: 45%~80%
Atmospheric pressure: 86~106Kpa
Medium withstand voltage: 1000V
Insulation resistance: 50MΩ
Lead out form: lead
Life expectancy: 10000000 times
Features
1, ultra-thin design, compt and delicate, easy installation!
2, safety and stability: the lock body is made of iron material, hard and stable!
3, work mode: electrify unlock, close door lock way, application simple!
4, Low power consumption: voltage 12V, current is only about 0.4A, energy saving!
5, long life: aging test: 100 thousand times, durable!
6, directional: symmetrical design, bright processing, regardless of the positive, negative, left, right, universal installation, convenient!
7, installation methods: mounted, latent, embedded arbitrary installation, 360 degrees from all angles applicable!
8, security: anti vibration, anti prying, drilling, open design technology for a variety of products of cabinet!
Working principle
Power on, the lock retrt, unlock;
Power off, the lock pops up, closes the lock
Application principle
Unlock: control the power on or off
Lock: push door, lock automatically locked
Scope of application:
Express cabinets, lockers, newspaper boxes, storage cabinets, storage shelves, file cabinets, filing cabinets, drawers, meter box, locker, intensive cabinets and other products, and is widely used in ftories, mines, schools, banks, troops, prisons, courts, hotels, farms, bathing centers.
Included:
1 x Small 6V/12V Electric Lock
Notes:
1. Due to the different monitor and light effect, the tual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
