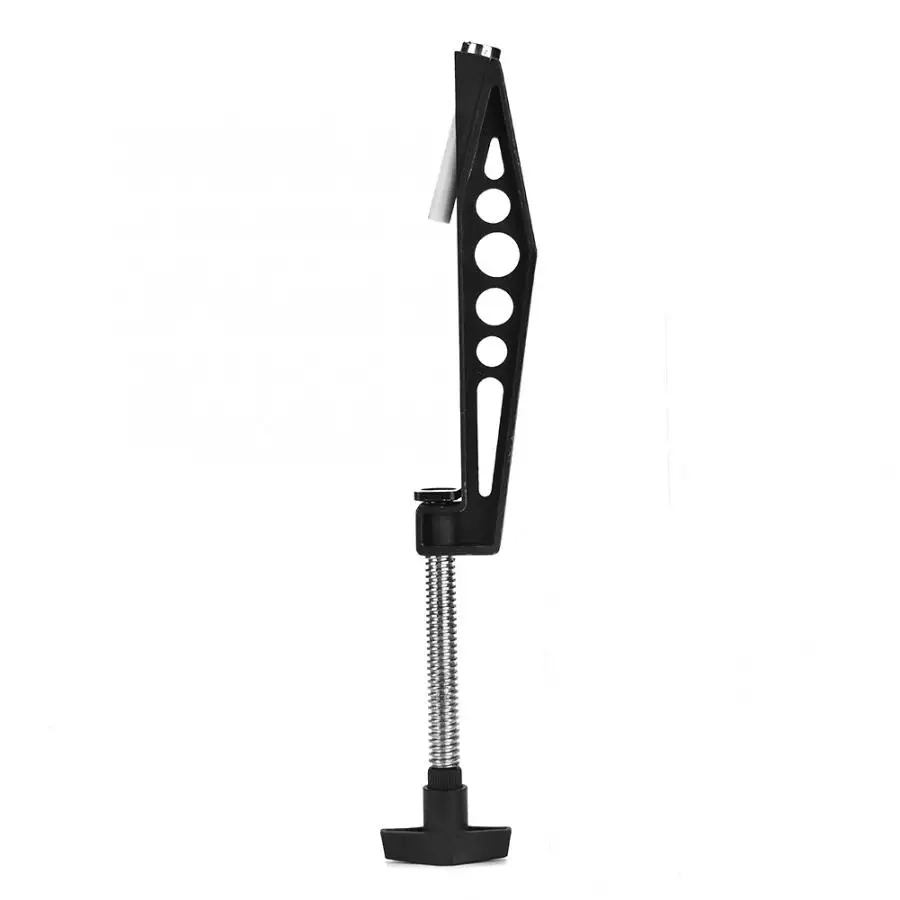

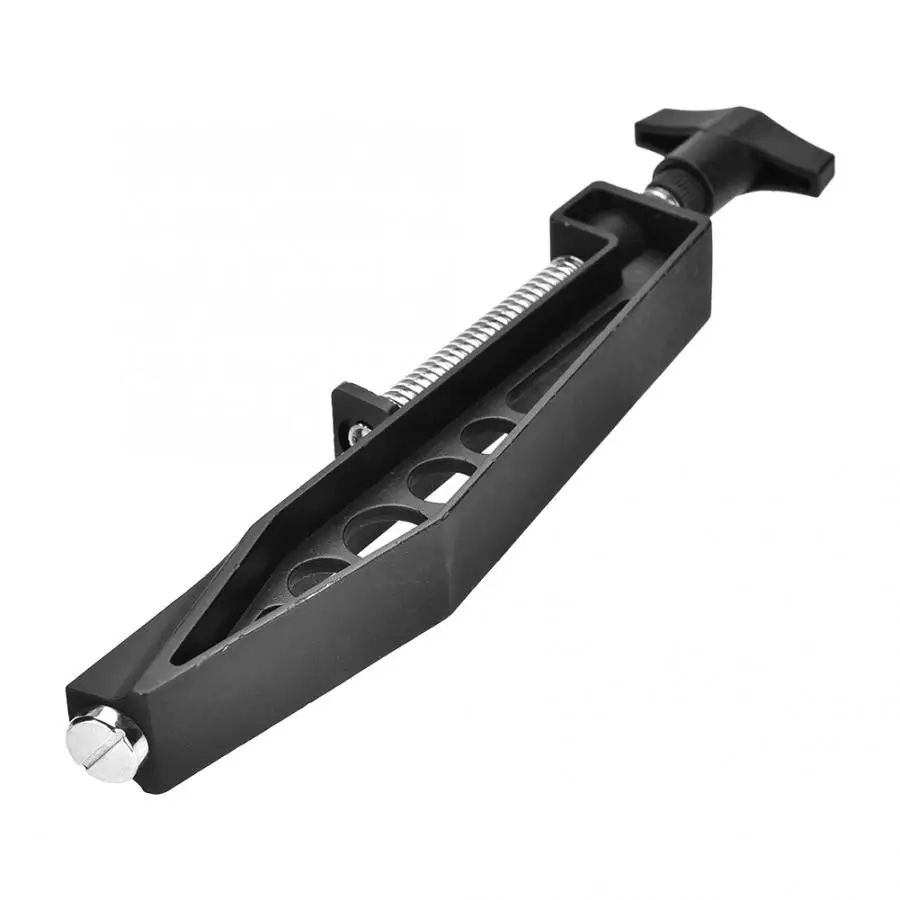

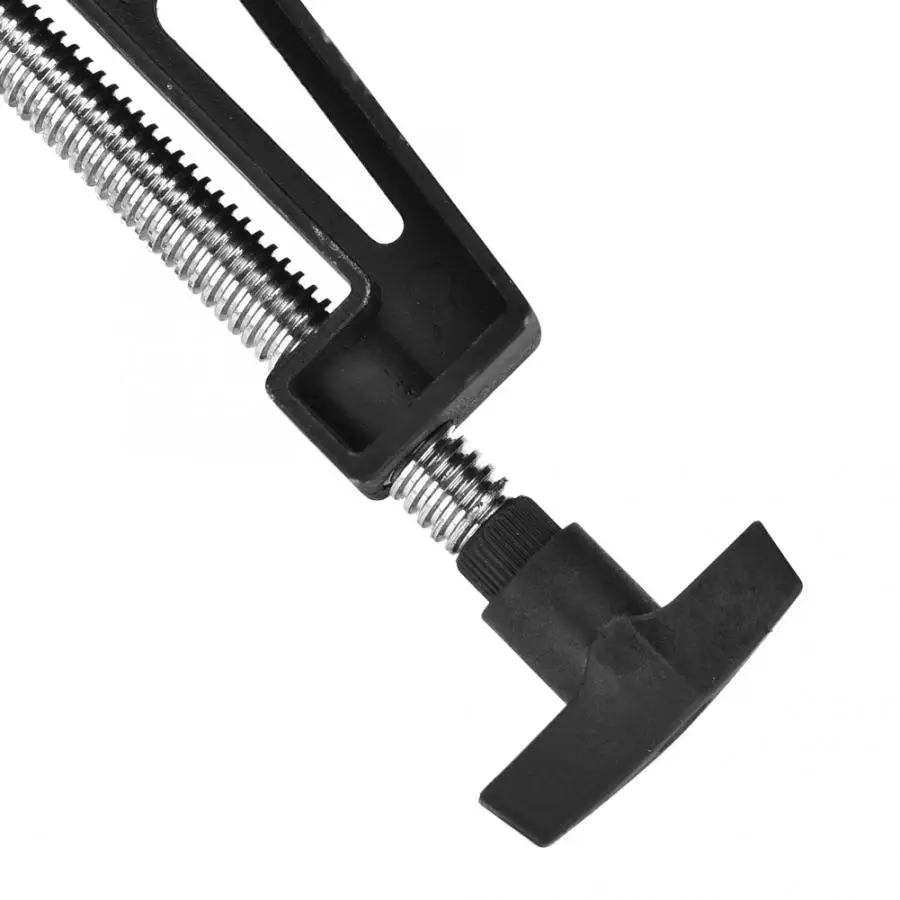

Woodworking Pocket Hole Joints Fixed Clamp Slant-hole Drilling Accessories

Descriptions:

About the slant hole, the most difficult thing is to assemble two pieces of workpiece is difficult to fix, drill drill down easy to run offset shift, greatly affect the accuracy of the assembly. The slant hole pull clip solves these problems well.

Features:

Made of high quality material, fixed clamp body is made of metal, so it is not easy to deform when clamping workpiece. Adopted the process of high temperature quenching, with high hardness. It is recommended to use this pocket Hole Joints fixed clamp matched with positioning drill. Deepen the thread, when tightening, there is no block stuck phenomenon. Used for fixed workpieces, when drilling, not easy to run off tracking, improving the efficiency of assembly greatly.

Specifications:

Material: Metal+plastic

Type: Slant hole special fixing clamp

White plastic pipe diameter: 9mm/0.35inch

Tightening clamping range: 25mm/0.98inch

Release clamping range: 110mm/4.33inch

Use method:

1. Hole positioning

2. Drill two parallel oblique holes

3. Put the white plastic pipe of the clamp into one of the holes, turn the thread handle to lock the two workpieces to be assembled (Slant hole drill about 9mm in diameter).

4. Tighten the screws and complete the assembly.

Package Included:

1 x Slant hole fixing clamp

Note:

1.This is not pocket hole jig. You should make pocket holes on the wood with your pocket hole jig first, then use this clamp to fix on the wood.

2.Please measure the size of your step drill bit before placing order, because the diameter of the white plastic pipe is about 9mm, and the step drill bit of less than 9mm can't be used in this clamp.(If you want to use with drill bit of less than 9mm, please try to polish the white plastic pipe, which can be removed).
