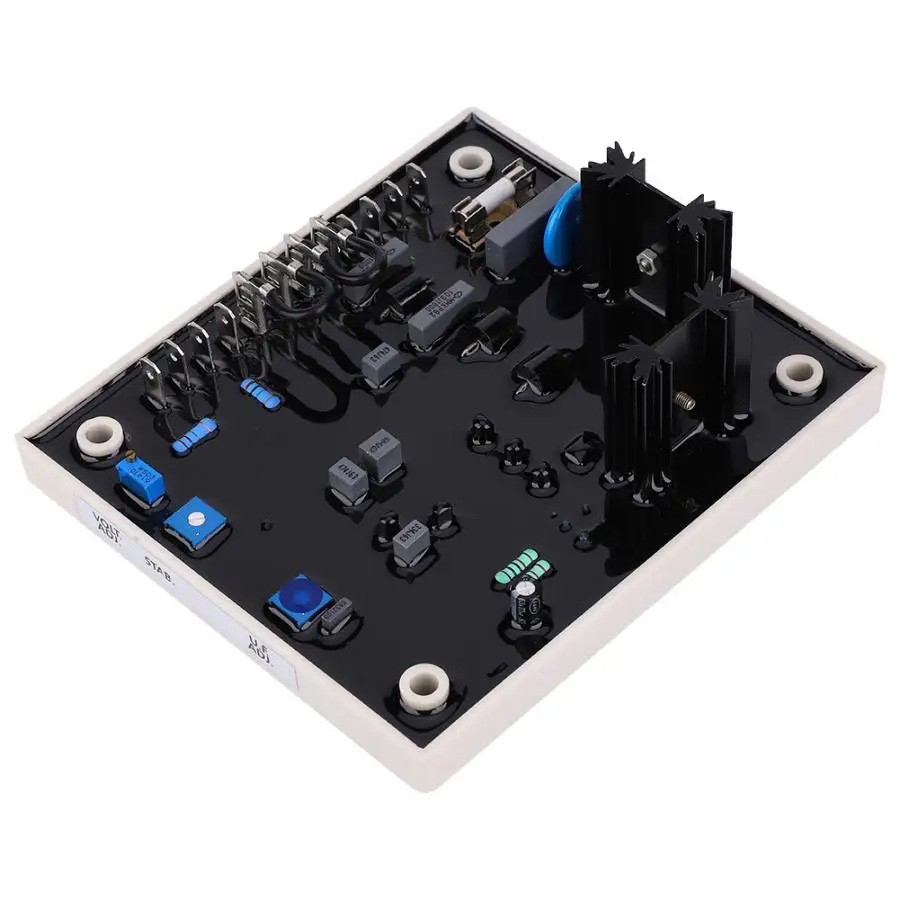

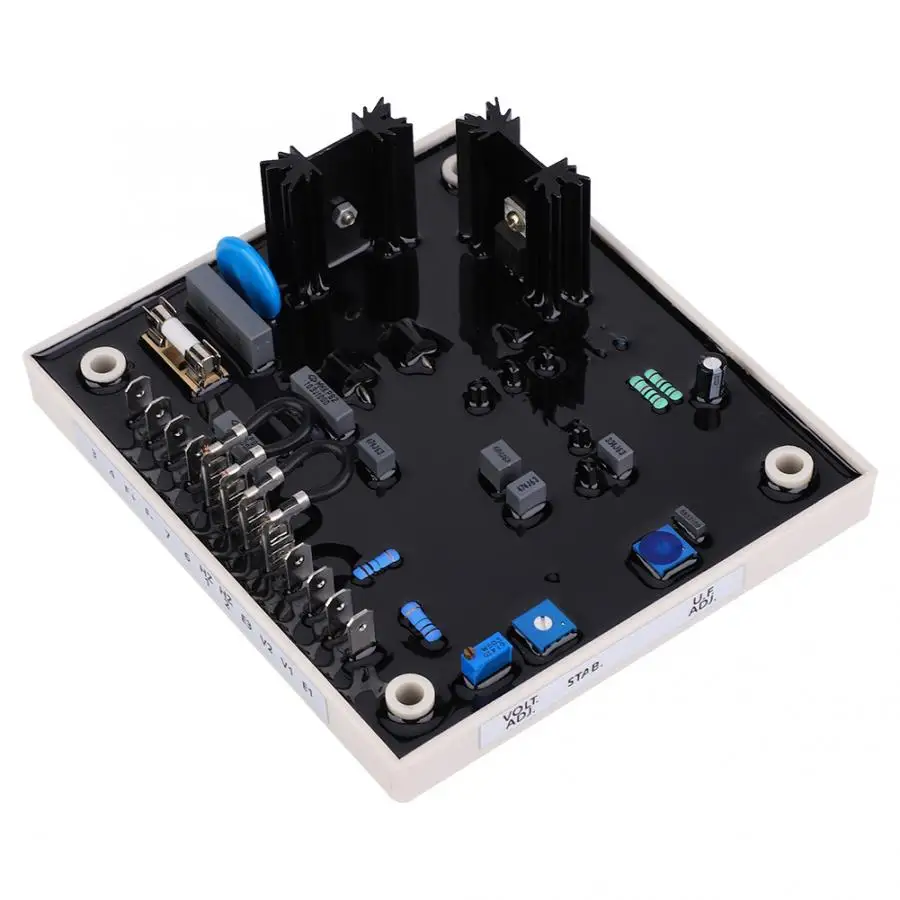

Дизельный двигатель AVC63-4A AVR Автоматический регулятор напряжения для Бесщеточный Генератор запасные части ГЕНЕРАТОР ЗАПЧАСТИ и АКСЕССУАРЫ

Описание

Дизельный двигатель AVC63-4A AVR Автоматический регулятор напряжения для Бесщеточный Генератор запасные части ГЕНЕРАТОР ЗАПЧАСТИ и АКСЕССУАРЫ

Особенности:

1. AVC63-4A AVR подходит для самовлюбленных роторные моторы.
2. Если вам нравится однофазный 120/240VAC обнаружения напряжения с перемычкой, выберите 50/60 HZ с перемычкой.
3. С низкочастотной защитой и функцией подавления EMI.
4. Регулируемое напряжение, стабильность и низкие частоты защиты.
5. Высокая отключающая способность предохранителя.

Параметры:

Detection Input: Voltage 120 (90~139) / 240 (190 ~ 277) VAC';font-family:'meiryo>';font-family:'meiryo>

Power Input: Voltage 95 ~ 139VAC ± 10% single phase two line';font-family:'meiryo>';font-family:'meiryo>

Magnetic Field Output: Voltage: Maximum 63VDC, Current: Continuous 4A, non-continuous 7A within 60sec / 9A within 10sec, Resistance: Minimum 15Ω, Maximum 1000Ω';font-family:'meiryo>';font-family:'meiryo>

Voltage Regulation Rate: <±1% (engine speed variation is within 4%)';font-family:'meiryo>';font-family:'meiryo>

Voltage Establishment: Need to remaining magnetic voltage of 5VAC or more at the AVR input terminal';font-family:'meiryo>';font-family:'meiryo>

External Voltage Adjustment: ±15% with 10KΩ 1Watt potentiometer';font-family:'meiryo>';font-family:'meiryo>

Power Consumption: Maximum 15W';font-family:'meiryo>';font-family:'meiryo>

EMI Suppression: Built-in EMI filter';font-family:'meiryo>';font-family:'meiryo>

Low Frequency Protection: Inflection point value adjustable range 45~55Hz';font-family:'meiryo>';font-family:'meiryo>

Working Temperature: -40~+60°C';font-family:'meiryo>';font-family:'meiryo>

Characteristic Control Button:';font-family:'meiryo>';font-family:'meiryo>

VOLTS: Voltage Adjustment';font-family:'meiryo>';font-family:'meiryo>

STAB: Stability Adjustment';font-family:'meiryo>

U/F: Low Frequency Protection Inflection Point Value Adjustment±

Package List:

1 x Automatic Voltage Regulator1 x Jumper Wire1 x User Manual
