DPS5005 Шаг вниз Связь версия Bluetooth Напряжение преобразования Высокая точность Управление Питание Модуль Регулируемый дом

Features:

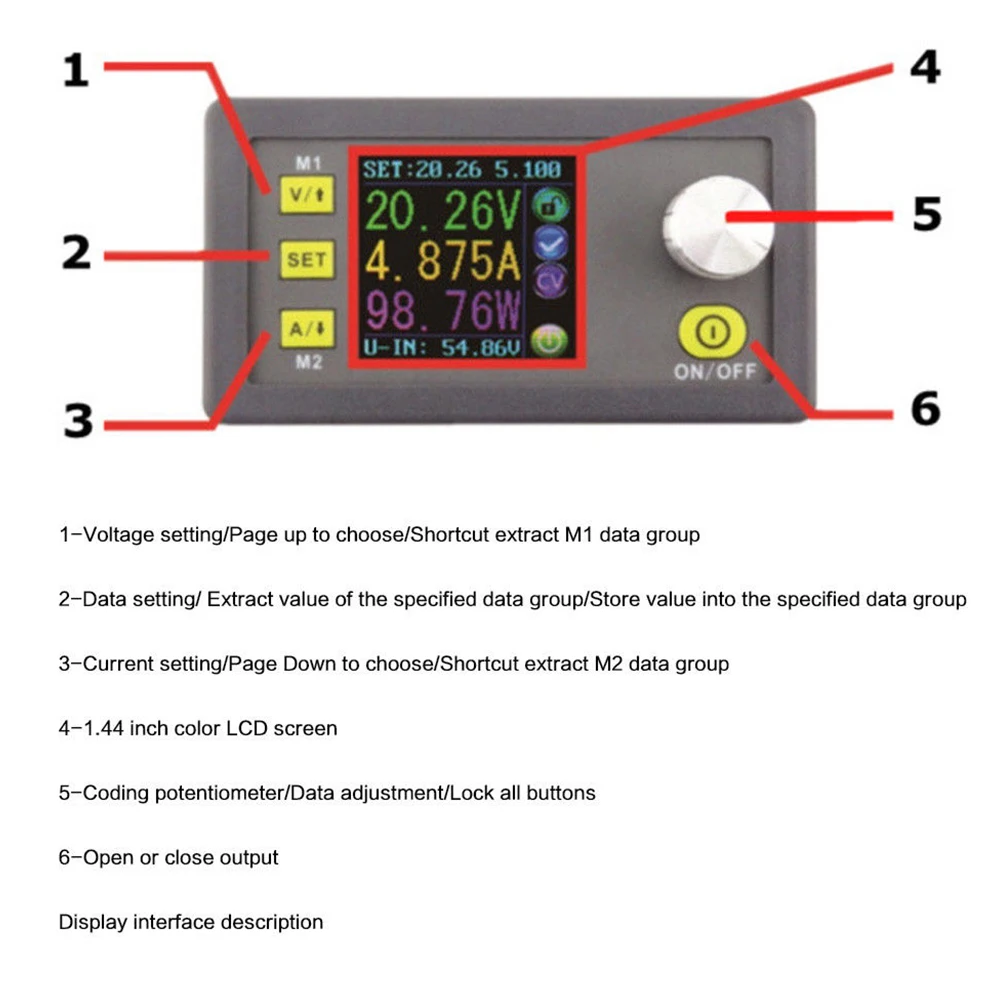

1.44 inch LCD hd color LCD screen, one screen display voltage/current/power and other data
160 degrees wide Angle of view, high brightness, long working life
4 - bit resolution, higher accuracy, detection data error is smaller
Through Bluetooth connection to the mobile phone APP, you can remotely monitor and set up the CNC power supply on the APP
including most of the operations that can be carried out on the panel, which is convenient and fast.
When the output voltage/current power exceeds the protection value, it will automatically stop the output, in case of electrical equipment damage
With key locking function to prevent misoperation
Built-in data storage function, can store 10 groups of data (m0-m9)
Specifications:

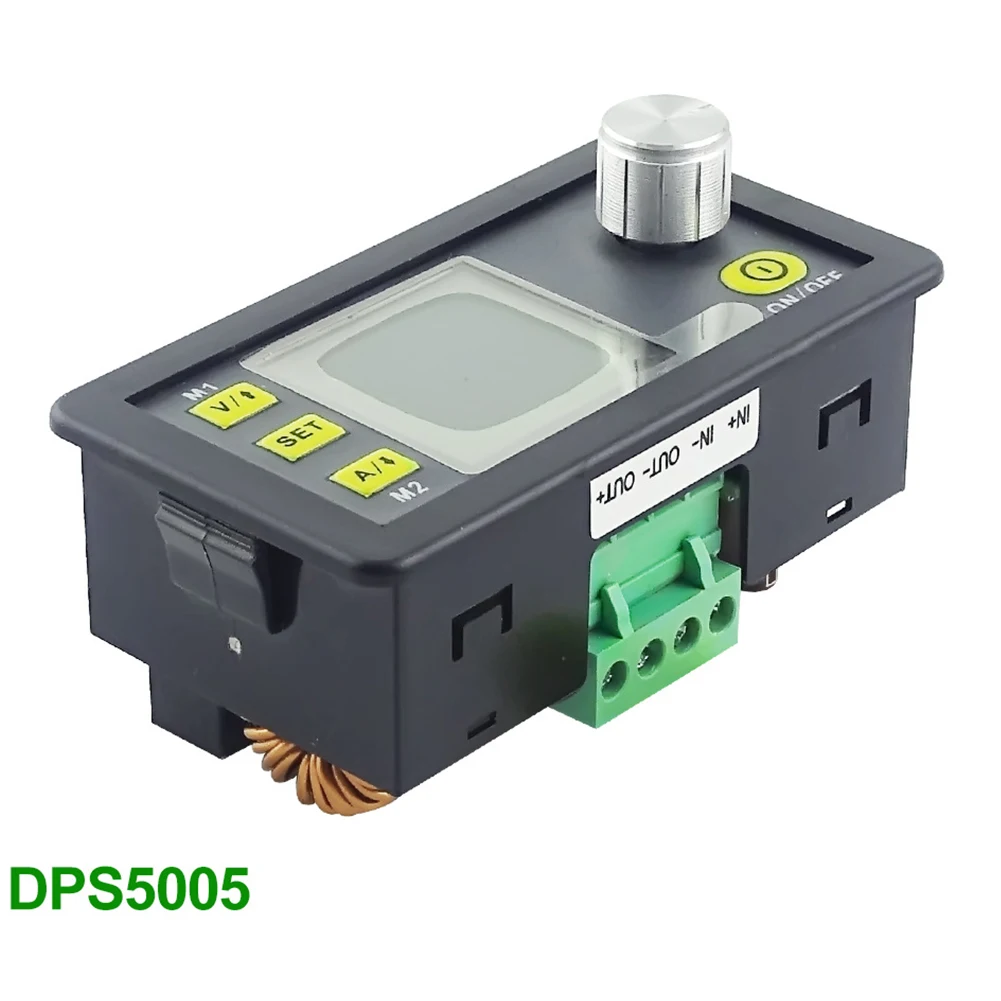

Product Name: Power Supply Module
Color: Black
Model: DPS5005 Communication Version
Output Voltage Range: 0-50.00V
Output Current: 0-5.000A
Output Power: 160W
Output Voltage Accuracy: ± 1%
Product Dimension: About 79x43x48mm
Working Temperature: 0-40℃
Type: A, B, C

Package Included:
1pc x Power Supply Module
Note:
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 0.5-2 cm differences due to manual measurement.
