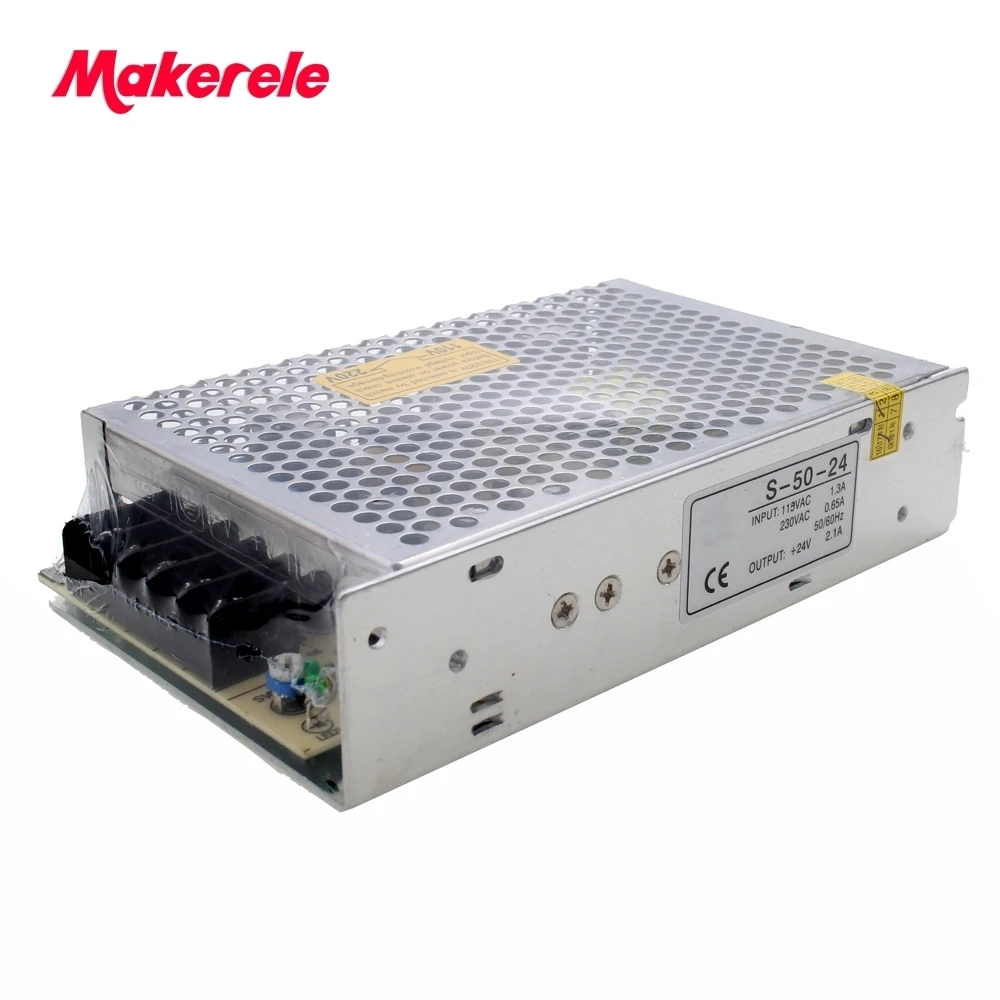

enclosed switching power supply S-50-5/12/24/48 ac/dc switch power supply 5V 10A 50w S-50-5

Описание

Setup,Rise,Hold Time:200ms,100ms,30ms at full load
50w switching power supply Size:105*109*40 mm

5V 10A 50w switching power supply
High efficiency, high reliability, lost cost,ROHS,CE 1 year warranty

50w switching power supply Product Description

Model Model	S-50-5	S-50-12	S-50-15	S-50-24	S-50-48
DC Voltage	5V	12V	15V	24V	48V
Rated Current	10A	4.2A	3.4A	2.1A	1A
Current Range	0-10A	0-4.2A	0-3.4A	0-2.1A	0-1A
Rated Power	50W	50.4W	51W	50.4W	48W
Ripple & Noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Voltage Adj. Range	-5%, +10%	10%	10%	10%	10%
Voltage Tolerance	2%	1%	1%	1%	1%
Setup, Rise, Hold Up Time	200ms	100ms	20ms	at full load

INPUT

Voltage Range 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC

AC Current 1.3A/115V 0.65A/230V

Efficiency 71% 78% 78% 82% 84%

Inrush Current Cold start 18A/115V 36A/230V

Leakage Current <1mA/240VAC

PROTECTION

Over Load 110%~160%

Protection type: Fold back current limiting, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity -10C~+60C; 20%~90%RH

Storage Temp., Humidity -20C~+85C; 10%~95%RH

Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

STANDARD

Safety Standard Design refer to UL1012

EMC Standard Design refer to FCC Part15 J Conduction Class B

OTHERS

Dimension 159*97*38mm(L*W*H)

Weight 0.51Kg

Packing 30pcs/16.1Kg. According to your order,we can provide different cartons for you.

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1 & 47 parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation

Switching Power Supply connecting wire:

enclosed switching power supply S-50-5/12/24/48 ac/dc switch power supply 5V 10A 50w S-50-5

50w switching power supply Size:

All switching power supply:

Packaging & Shipping

enclosed switching power supply S-50-5/12/24/48 ac/dc switch power supply 5V 10A 50w S-50-5

1. Item will be shipped within 5-7 business days. 2. Delivery Time: ----Via Air: Generally 1-3 working days ----Via Express: Generally 3-7 working days. ----Via China Post Air Mail: Generally 15-25 working days ----Via Sea: According to the order. 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.

Maker ElectricServices

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing - The world-famous city for low-voltage electric apparatus.

Custom Product Design OEM/ODM Profession in export service from Maker Electric High quality Product, Affordable Price

FAQ

What is a switching power supply?

Switching power supply is the use of modern power electronic technology, control switch tube opened and shut off time ratio, to maintain stable output voltage of a power supply, switching power supply by general pulse width modulation (PWM) control IC and MOSFET.

What is the application scope of switch power supply? Switching power supply products are widely used in industrial automation control, military industry equipment, scientific research equipment, LED lighting, industrial control equipment, communications equipment, electrical equipment, instrumentation, medical equipment, semiconductor refrigeration and heating, air purifier, electronic refrigerator, LCD, LED lamps and lanterns, communications equipment, audio and video products, security monitoring, leds bags, computer case, digital products and instruments, etc.

What is the structure of switch power supply products?

Roughly by the main switch power supply circuit, control circuit, detection circuit, auxiliary power supply of the four most.

Switching Power Supply Common faults:

1.Blown fuse.
2.No dc voltage output or the output voltage is not stable.
3.The power load ability is poor.
