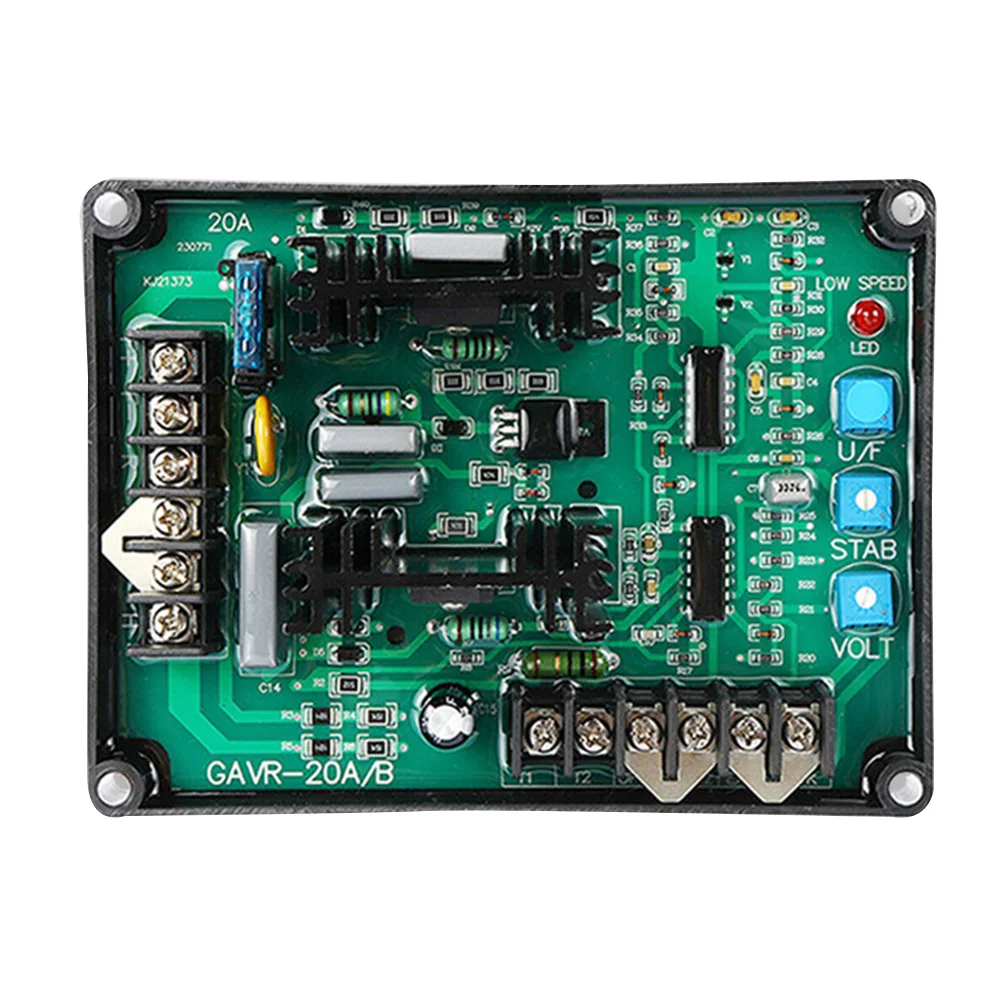

GAVR-20A универсальные бесщеточные компоненты модуль генератор запчасти инструмент AVR аксессуары автоматический регулятор напряжения Замена

Features:
AVR GAVR-20A universal brushless 20A automatic voltage regulator for generator
Regulator GAVR AVR 20A AVR-20A GAVR-20A generator set
Universal 20 Amp 1/2 wave self excited dip-switch, programmable by valtage alternator generator, which is suitable for brushless generator
GAVR-20A AVR with black aviation potentiometer make sure our product will have better stability and longer lifetime
Low frequency protection with voltage slow build - up function
With high break capacity fuse protection
Specifications:
Type: Automatic Voltage Regulator
Material: Mixed
Color: As Picture
Size(L*W*H): About 14.5x10.5x6.5cm
Sensing Input Voltage: 220/400VAC,1phase 2wire
Power Input Voltage: 180~240VAC, 1phase 2wire
Output Voltage: Max 90VDC,
Input Voltage: Max 240VAC
Current Continuous: 6A
Intermittent 15A for 10SEE
Resistance: Min.10Ω Max 100Ω
Voltage Build-up Esidualvolts at AVR terminal: >5VAC
External Volts Adjustment: +/-7%with 1KΩ 1watt trimmer
Unit Power Dissipation: Max.8Watt
Package Included:
1 PC x Automatic Voltage Regulator
1 PC x English Manual

Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
