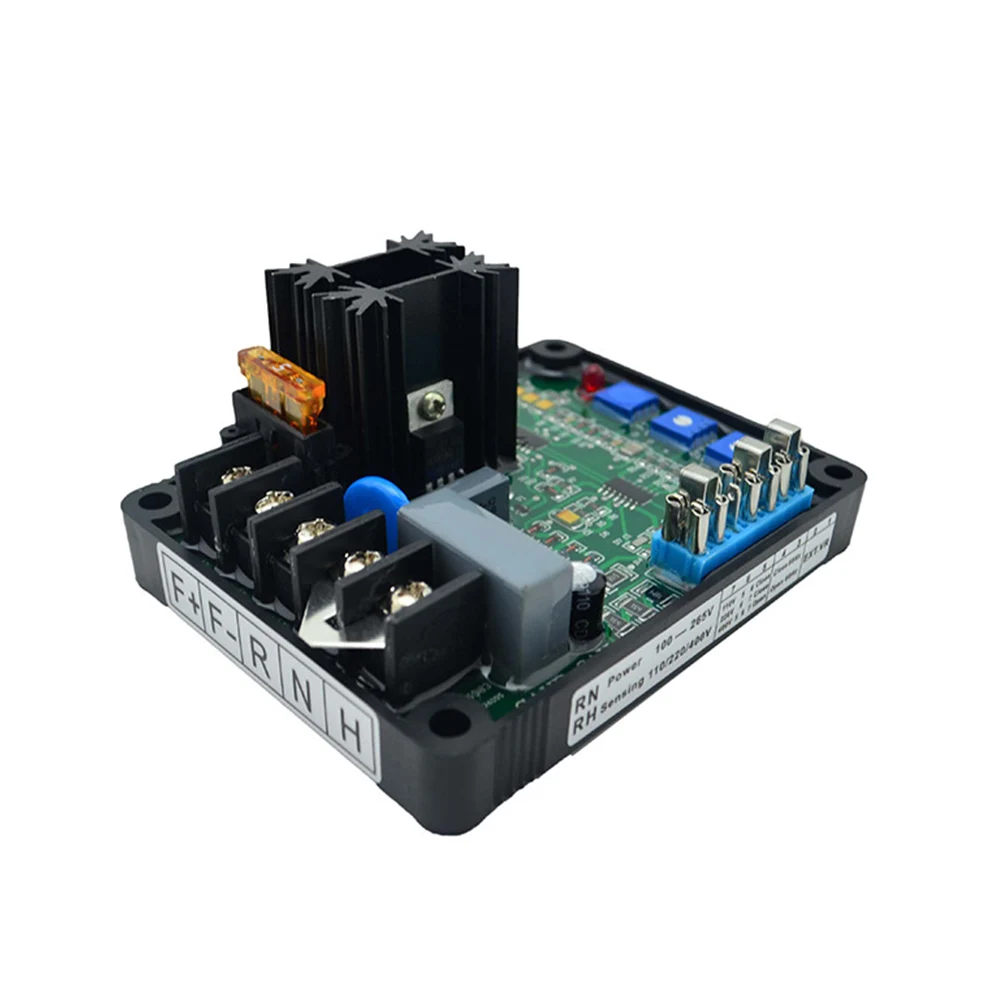

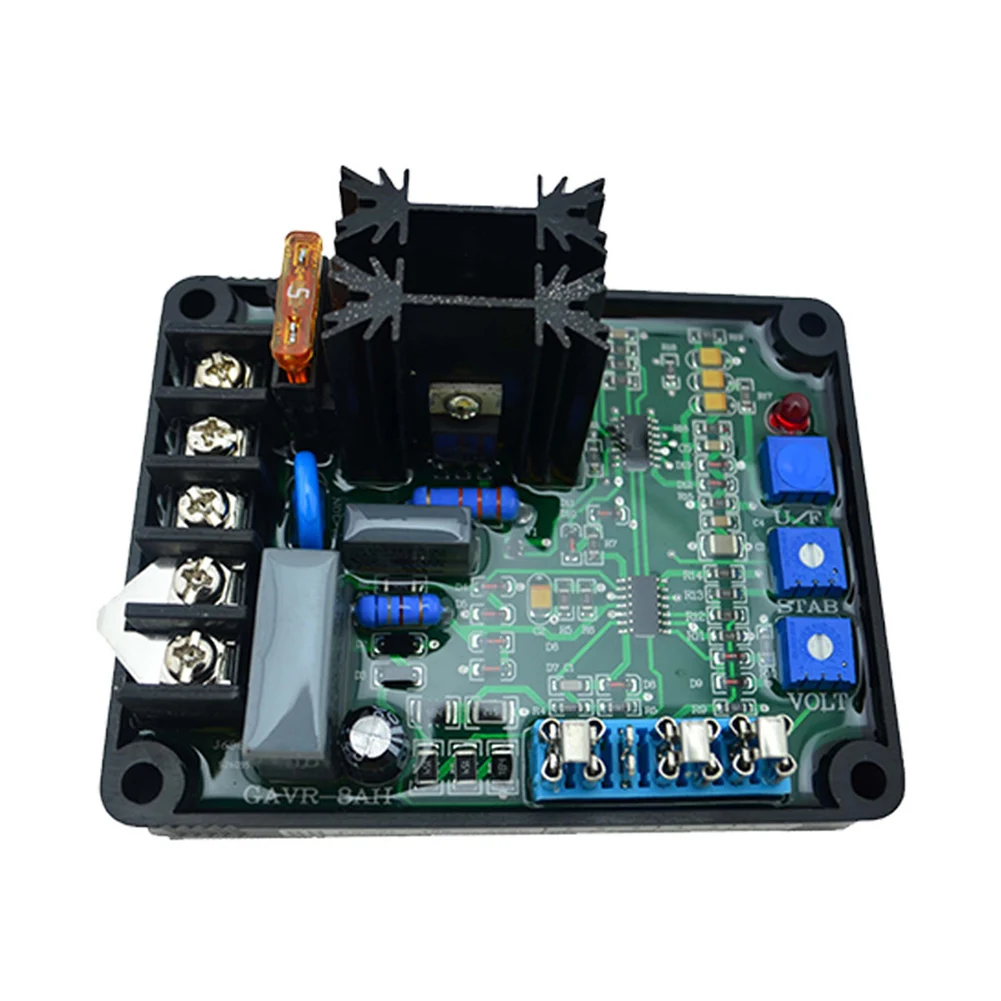

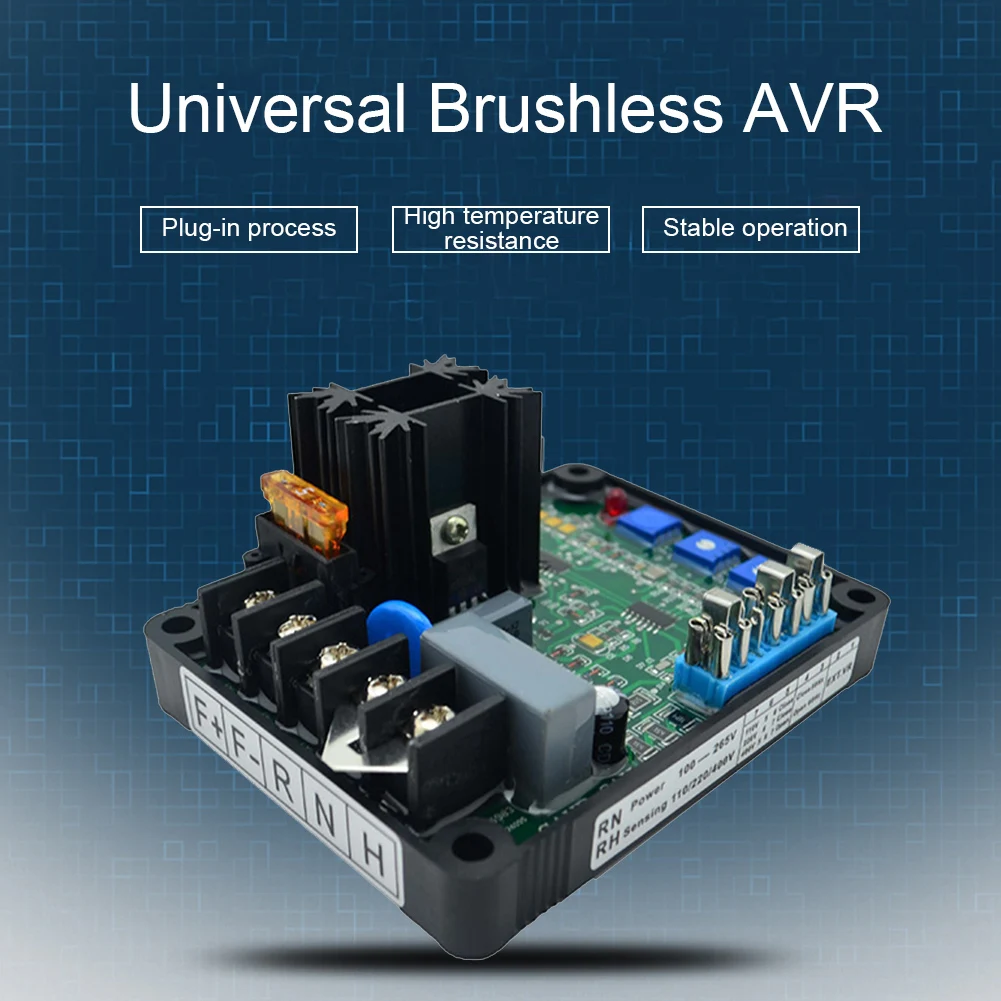

GAVR-8A AVR Универсальный генератор Запчасти Замена инструмента Независимый модуль автоматический регулятор напряжения Защита частоты

Features:
The pressure regulating accuracy < plus or minus 1%.
Apply to 220/380 vac brushless generator.
5 a DC output current.
To the jumper copper choose 50/60 Hz.
Small volume, light weight, strong weatherability.
With the function of low frequency protection and voltage slowly build
EMI suppression circuit.
With high breaking capacity fuse protection.
Specifications:
Color: as shown
Size:about 12x9x6cm
Input voltage: 110/220/400V, 1 phase 2 wire
Voltage: 100-260V, 1 phase 2 Wire
Output voltage: max 90V dc @240V input
Current: continuous 3.7A
Intermittent 5A for 10 secs
Resistance: 15 ohms min 100 ohms Max
+/-1.0% RMS with 4% engine governing
Voltage build-up: residualvolts at AVR teminal>5VAC
Thermal drift
0.03% per deg. C change in AVR ambient
Soft start time: 2 seconds
External voltage adjustment: +/-7% with 1 k ohm 1 watt trimmer
Under frequency protection
Set point: 95% Hz
Slope: 100-300% down to 30 Hz
Max. dwell: 20%volts/S recovery
Unit power dissipation: 8 watts maximum
Thermal drift:0.03% per °C chage in AVR ambient
Under frequency:60Hz system presets knee point at 55Hz
50Hz system presets knee point at 45Hz
Operating temperature:-40°C to + 60°C
Storage temperature:-40°C to + 85°C
Relative humidity:<95%
Package included:
1pc x GAVR-8A automatic voltage regulator
1pc x English manual
