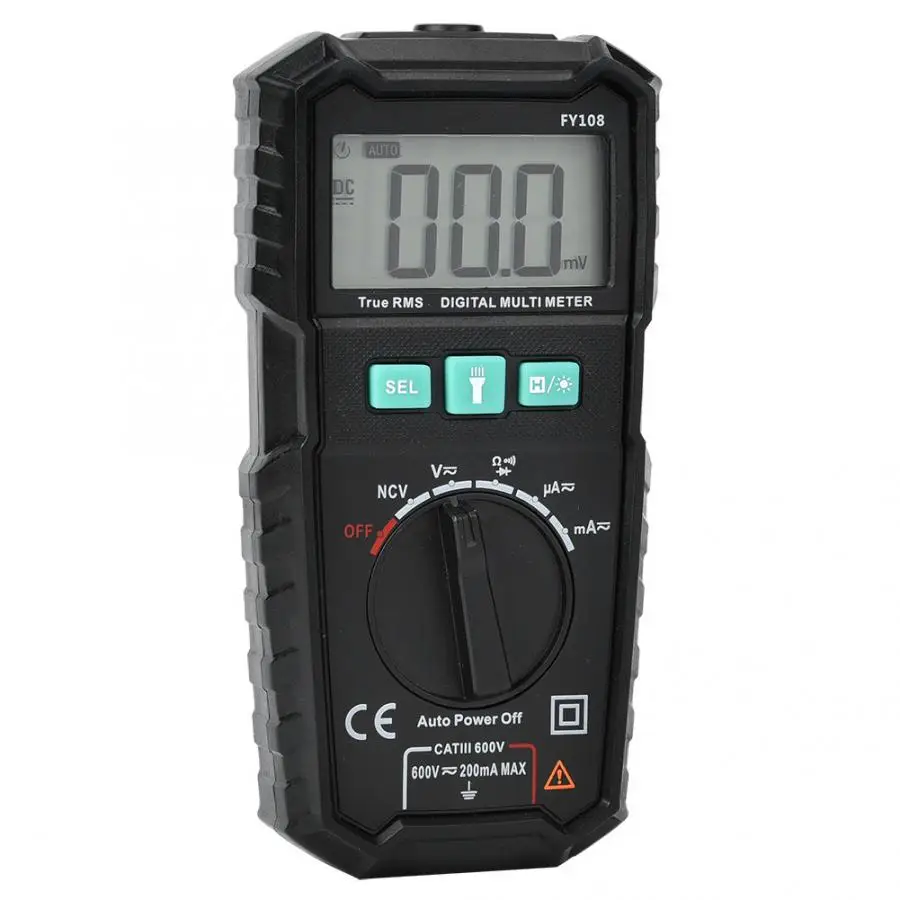

Pocket Mini Digital Multimeter Multi-Functional Portable Automatic Range Avometer Test Machine

Features:
Configuration of 3.1/2-bit LCD display can visually display the measurement results, easy to use. Small size, light weight, compact structure, can be put into the pocket, it is convenient to carry around. Support automatic range, full range is 1999 counting, accurate measurement results, sensitive response. With data retention function, it supports low voltage display of batteries and can shut down automatically. Supporting overload protection, PTC protection for resistance and self-recovery PTC250mA 250V for current. This multimeter can be widely used in schools, research institutes, factories and enterprises and other social fields. It meets the general technical requirements of GB/T 13978-92 digital multimeter and the safety requirements of GB/T 13978-2008 (IEC-61010-1:2001) electronic measuring instruments. The overvoltage standard is CAT III 600V.
Specification:
Condition: 100% Brand New
Item Type: Multimeter
Material: ABS
Type: FY108
Display: 3.1/2-bit LCD display

Count parameter
DC Voltage
Range	Resolution	Accuracy
200mV	0.1mV	± (0.5% reading +2 words)
2V	0.001V
20V	0.01V
200V	0.1V
600V	1V	± (0.8% reading +2 words)
Input impedance: 10MΩ, Maximum input voltage: 600V DC(effective value)
AC Voltage
Range	Resolution	Accuracy
2V	0.001V	± (1% reading +3 words)
20V	0.01V
200V	0.1V
600V	1V	± (1.2% reading +3 words)
Input impedance: 10MΩ, Response:RMS, Maximum input voltage: 600V AC(effective value)
Resistance
Range	Resolution	Accuracy
200Ω	0.1Ω	± (0.8% reading +2 words)
2KΩ	0.001KΩ
20KΩ	0.01KΩ
200KΩ	0.1KΩ
2MΩ	0.001MΩ
20MΩ	0.01MΩ	± (1% reading +2 words)
DC Current
Range	Resolution	Accuracy
200μA	0.1μA	± (1.5% reading +3 words)
2000μA	1μA
20mA	0.01mA
200mA	0.1mA
Overload protection:μA/mA, Range:F250mA self-recovery PTC, Maximum input current:250mA
AC Current(40Hz-1KHz)
Range	Resolution	Accuracy
200μA	0.1μA	± (1.5% reading +4 words)
2000μA	1μA
20mA	0.01mA
200mA	0.1mA
Overload protection:μA/mA,Range:F250mA self-recovery PTC, Response:RMS, Maximum input current:250mA
Battery	2 x AAA 1.5V Battery (Battery not included)

Package List:
1 x Multimeter(Battery not included)
1 x Instruction Manual
1 x Pair of Test Leads
