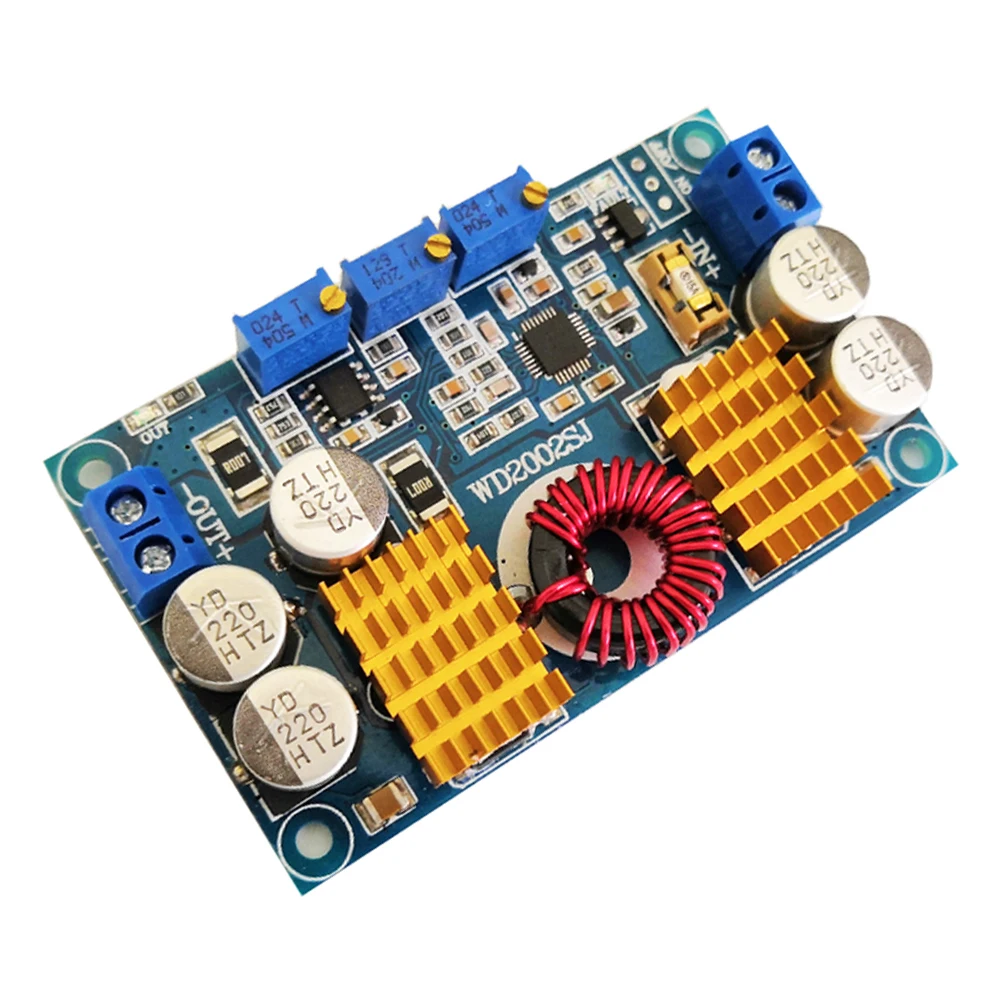

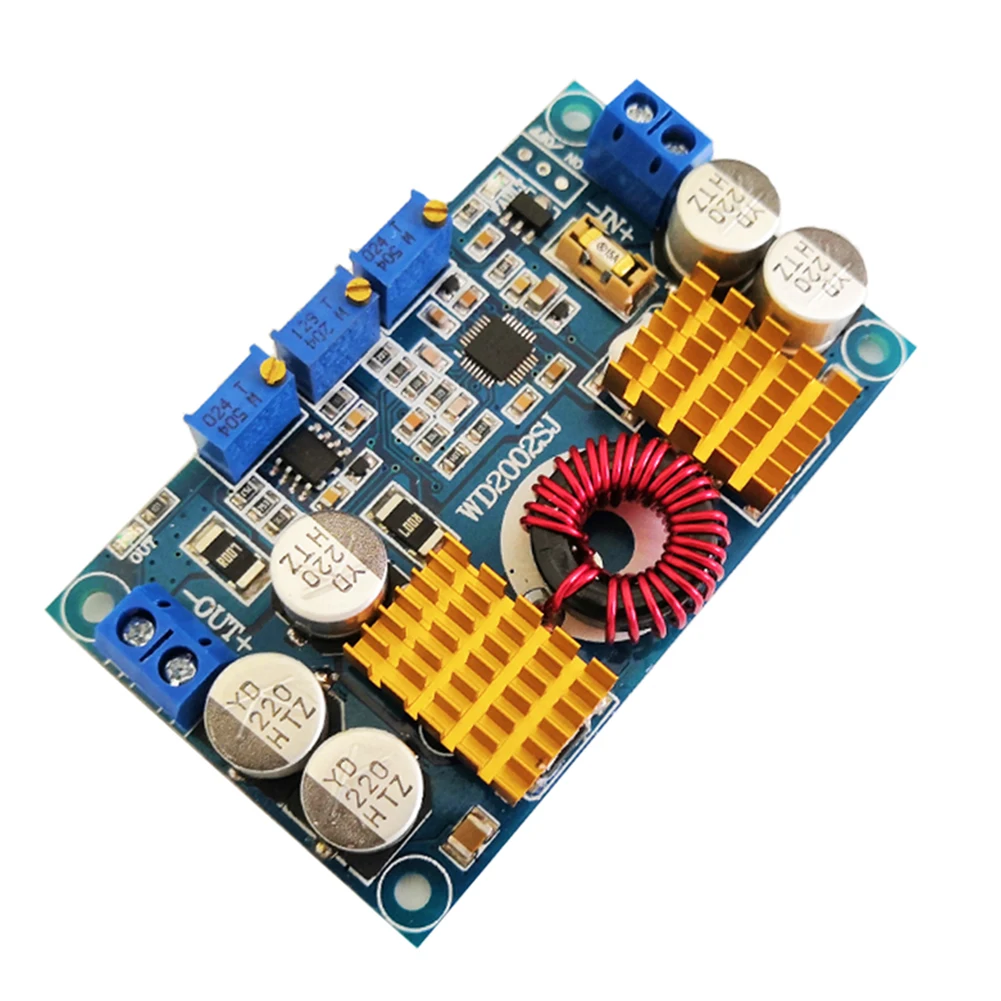

LTC3780 понижающий модуль питания автоматическая Замена Солнечный ток питания Boost Board понижающий постоянное регулирование напряжения аксессуары

Description:
The circuit board adopts 1.6 thick gold plating process;
The input uses a replaceable fuse to protect the power supply and equipment;
The whole version of electrolysis adopts imported original patch, low resistance and high frequency capacitor, which makes the ripple drop to freezing point;
Constant voltage, constant current, undervoltage protection (MPPT is more suitable for solar charging)
Output error indicator, when the output voltage drift is too serious, and the fault occurs when a short circuit occurs;
The oxidized heat sink dissipates heat, and the heat dissipation effect is better than that of the natural aluminum sheet;
The inductor is made of iron silicon aluminum and has a lower heat generation.
Specifications:
Product name:Power module
Color:As is shown
Material:Metal
Input voltage: DC5, recommended voltage above 10V
Output voltage: DC1V-30V continuously adjustable
Current output: 10A (MAX) long-term 7A or less
Output power: Long-term, 80 W, 130 W, more than 80 W please strengthen the heat
Output ripple: 50mV (12 V at 12 V, 5A measured)
Reverse protection: No, if necessary, please insert Schottky diode in series
Anti-creep output: None, as for charging the battery or load is self-inductance charging, please Schottky diode output in series
Short circuit protection: Yes
Size:About 77.6*46.5*15mm
Package Included:
1 PC x LTC3780 Power module
Note:
Transition: 1cm=10mm=0.39inch
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement
