M4070 профессиональный тестер Автоматический диапазон цифровой ЖК-дисплей сопротивление индуктивности зарядка через usb с подсветкой Электрический измеритель емкости

Description:

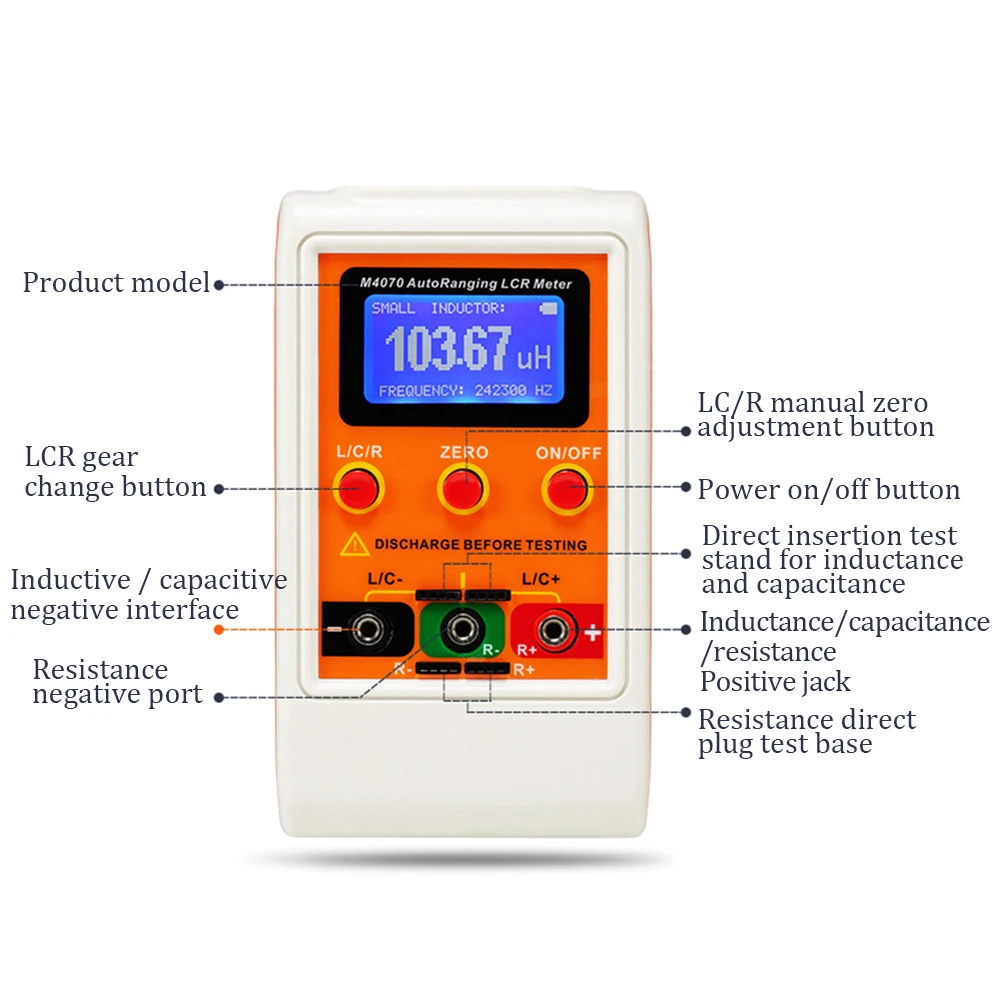

1. Full automatic range design, manual switch capacitance, inductance, resistance.
2. Five digital display. High accuracy 1%, 1pF capacitor, inductance 1uF, 1Ω resistance.
3. Manual reset button, error removal, convenient and accurate test of small number components.

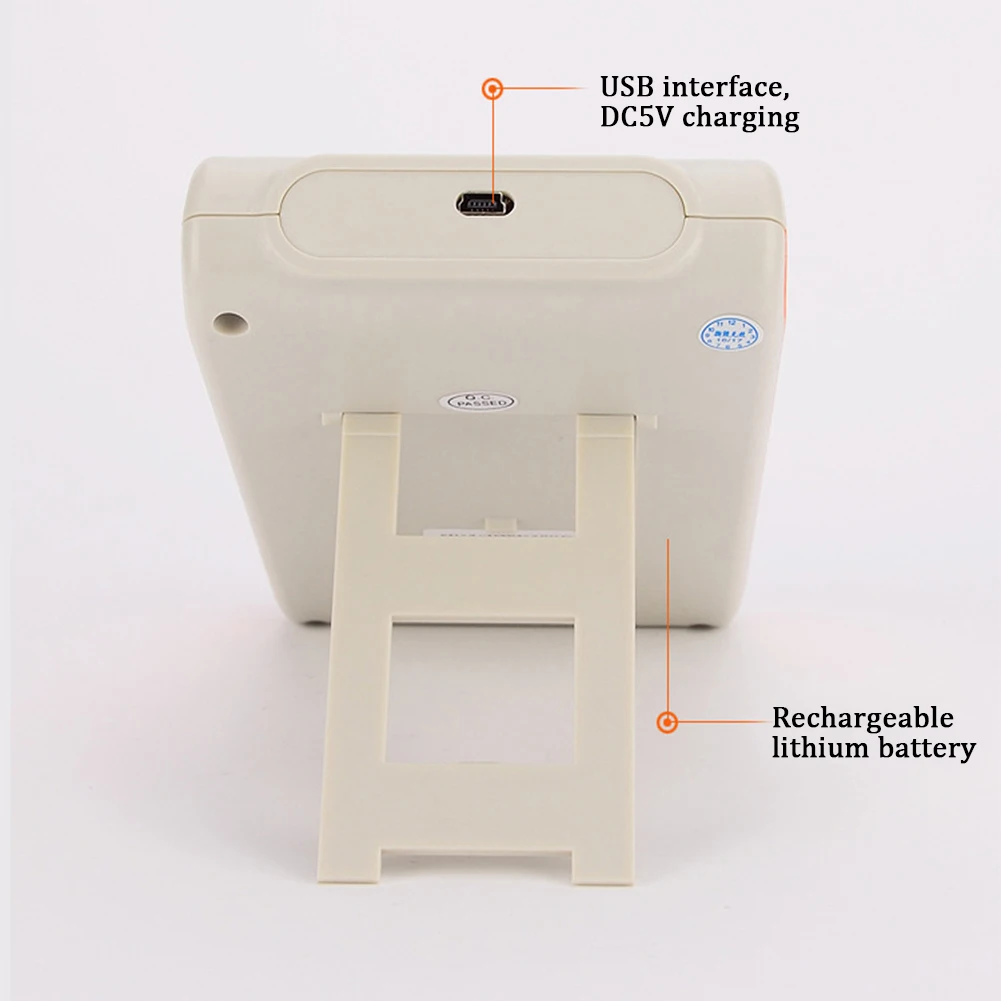

4. DC 5V charging, micro USB interface. High stability, high resolution.
5. USB computer driver, convenient data acquisition, professional electronic engineers engineering testing use.
Specifications:
Model: M4070
Material: plastic
Main color: orange
Display type: analog and digital
Feature: auto ranging, handheld
Battery: rechargeable battery(not included)
Size(approx.): (height X width X thickness) 170 X 95 X 30mm
Reset function: open/short circuit sweep frequency reset
Charging port: micro USB(500mA)
Display: 128 X 64 dot matrix, with backlight

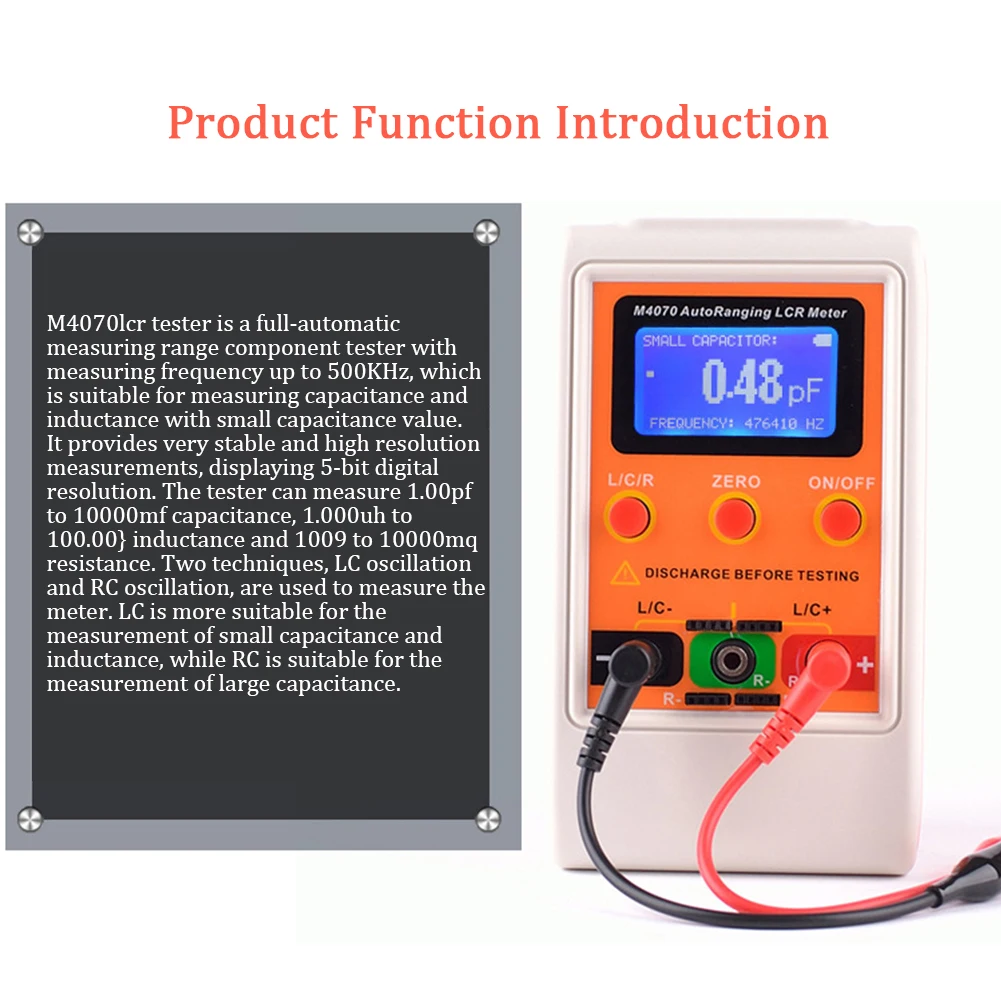

Test method: automatic LC and RC vibration
Test frequency: C 10-500Khz, L 10-360Khz
Fuse protection: 200mA
Test level range: ~1.5Vrms
Display range:
C 0.00pF ~ 100.000mF;
L 0.000uF ~ 100.00H;
Hz(LC test frequency) 0~900000Hz
S (RC test time) 0.000~99.999
R 0.00 ~ 10000MΩ
Package Included:
1PC * Meter((Inductance, Capacitance, Resistance)
1PC * USB Data Cable
1PC * Crocodile Test Clip
1PC * Chinese and English Instruction
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2cm differences due to manual measurement.
