MLX90640 32x24 термометрические долговечные части ИК-датчик инфракрасная точечная матрица DIY камера тепловизор Замена модуля

Description:

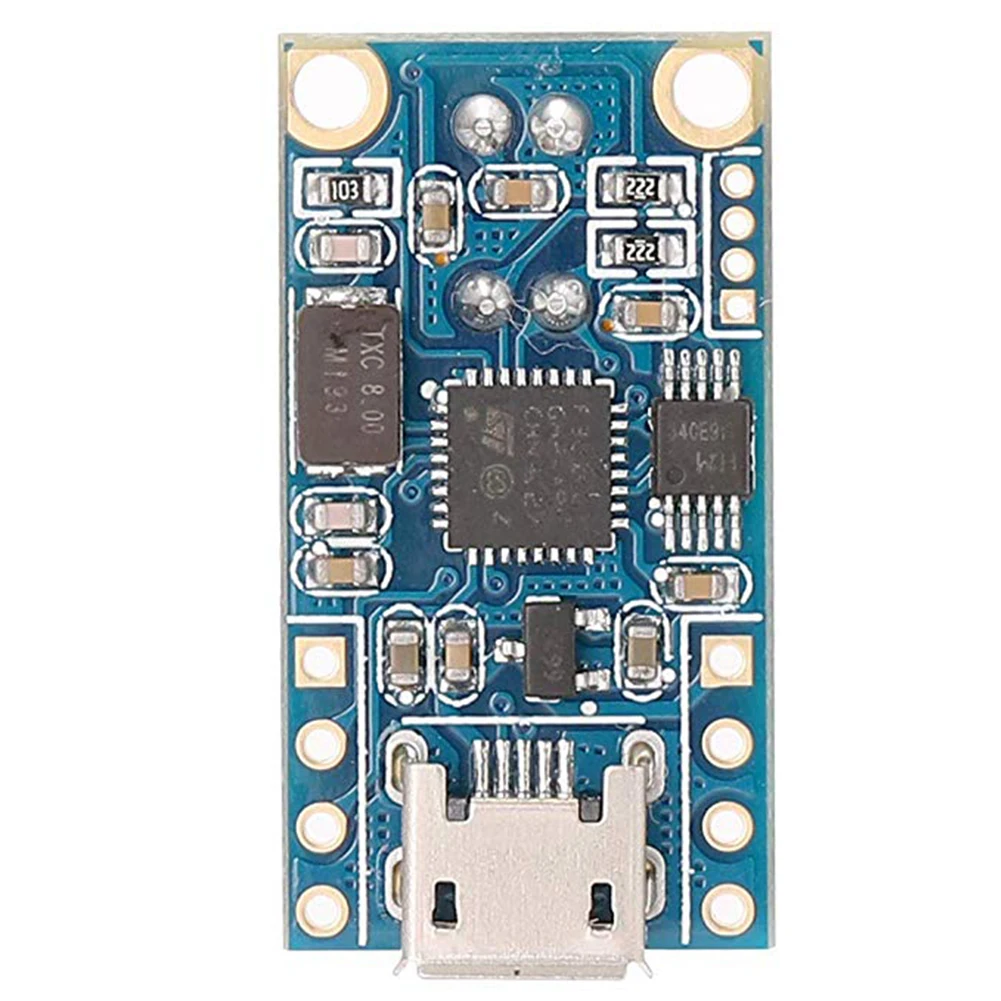

This module uses MLX90640 sensor.
The refresh rate can be set from 1 to 8Hz (when 1-4Hz, the baud rate is fixed at 115200. At 8Hz, the baud rate is fixed at 460800).
The serial port interface is reserved, and the serial port interface automatically outputs 768 points of temperature.
Just need a Micro USB cable to connect directly to your computer to see images without tools.
The default refresh rate is 8Hz and the baud rate is 460800.
Reserve the sensor IIC interface. If you need to use this interface, you need to short circuit the reset capacitor on the board.
Specifications:
Type: GY-MCU90640 32*24 module
Material: PCB
Color: as shown
Field of view angle: 55x35 degrees
Accuracy: ±2 degrees
Detection temperature range: -40°~300°
Size: about 28 x 15mm
Package Included:
1 x Module
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
