Описание

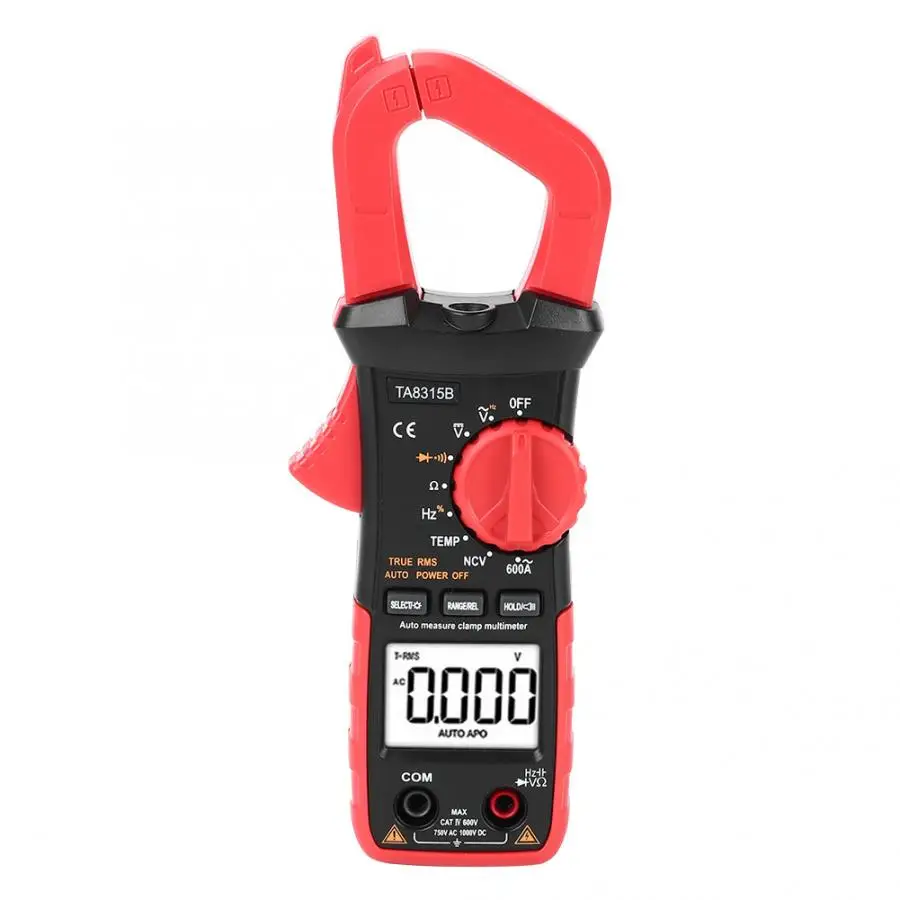

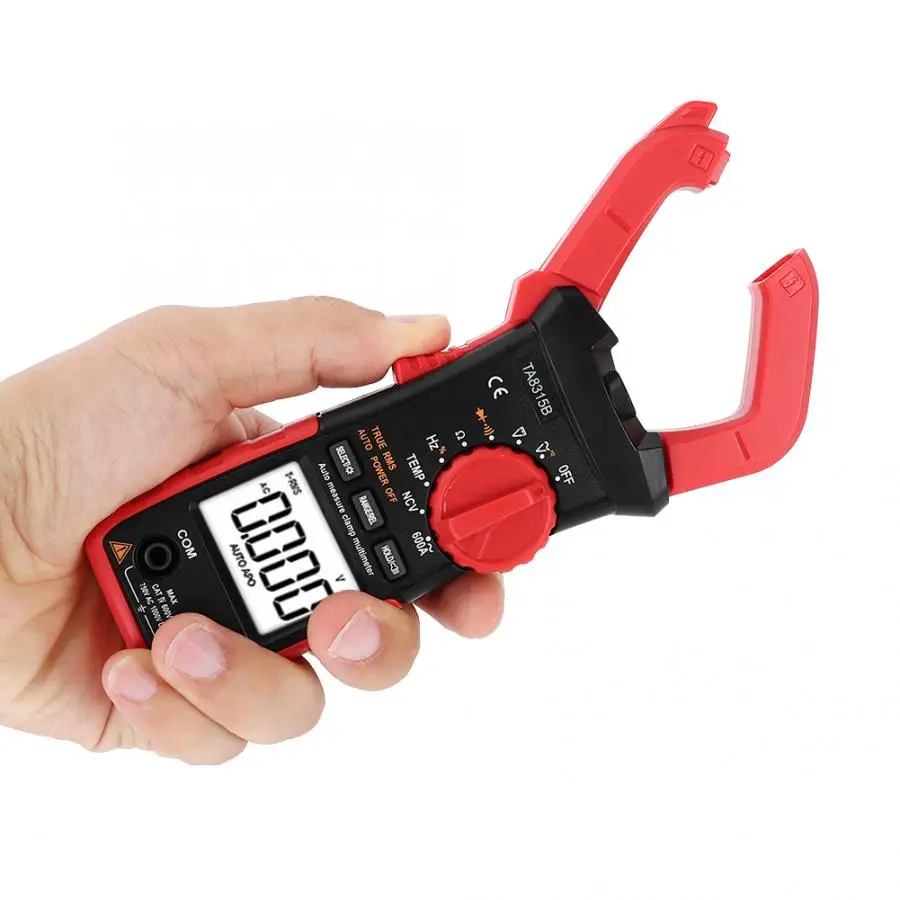

Multifunction Clamp Meter Multimeter High Accuracy Digital Ammeter Clamp Table AC DC Meter

Features:

The instrument has stable performance, high accuracy, high reliability, clear reading and overload protection. Driven by AAA1.5V battery (not included), the meter uses a large screen LCD display with boost power supply to ensure ultra-high brightness of backlight and flashlight even at the edge of 2.3V low battery. The watch is easy to carry and is a meter that most users like very much. The backlight can be turned on and turned off automatically after 15 seconds. This series of instruments can be used to measure DC voltage and AC voltage, AC and DC current 600A, resistance, capacitance, diode, temperature, continuity test, square wave output, frequency measurement and true RMS parameters. It is a superior tool and instrument, ideal for laboratories, factories, radio enthusiasts and families.

Specification:

Condition:100% Brand New

Model: TA8315B

Color: As shown in the picture

Sampling Frequency: 3 times /s

Battery: 2 x AAA battery(Not included)

Clamp Opening Size: 27mm / 1.1in

Backlight Display: Yes

On-off Alarm: Yes

Diode Measurement: Yes

Value Lock: Yes

DC V:

Range	Basic precision	Resolution
6V	± (0.5%+3)	0.001V
60V		0.01V
600V		0.1V
1000V	± (0.8%+10)	1V

AC V:

Range	Basic precision	Resolution
6V	± (0.8%+3)	0.001V
60V		0.01V
600V		0.1V
750V	± (1.2%+10)	1V

AC A:

Range	Basic precision	Resolution
6A(onlyB/C)	± (2%+30)	0.001A
60A		0.01A
600A		0.1A

Resistance:

Range	Basic precision	Resolution
600Ω	± (0.8%+5)	0.1Ω
6kΩ	± (0.8%+3)	1Ω
60kΩ		10Ω
600kΩ		100Ω
6MΩ		1kΩ
40MΩ	± (2.5%+3)	10kΩ

Frequency:

Range	Basic precision	Redsolution
10Hz	± (0. 1%+3)	0.01Hz
100Hz		0.1Hz
1kHz		1Hz
10kHZ		10Hz
100kHz		100Hz
1MHz		1kHz
10MHz		10kHz

Temperature Measurement:

Range	Basic precision	Resolution
(-20-1000)℃	± (1. 0%+5)<400℃;± (1.5%+15)>=400℃	1℃
(0-1832) ℉	± (0.75%+5)<750℉; ± (1.5%+15)>=750℉	1℉

Package List:

1 x Clamp Meter
1 x Pair of Thermocouples

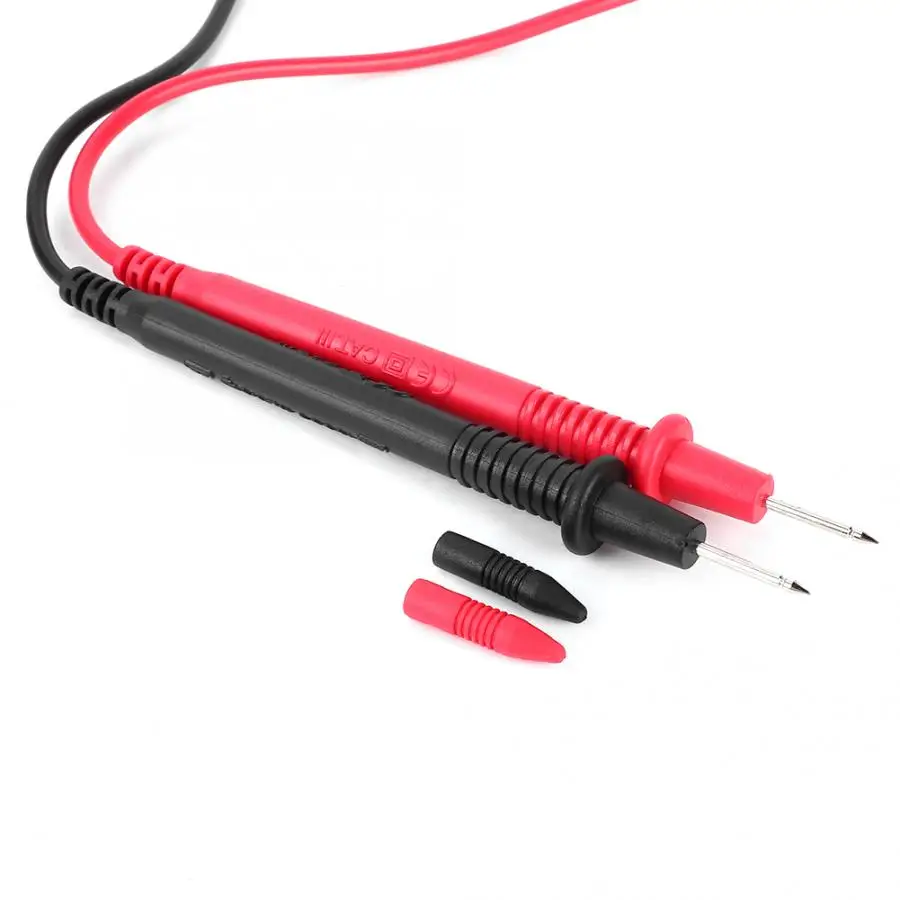

1 x Pair of Test Leads
1 x Instruction Manual
1 x Cloth Bag
