Описание

Пластиковый модуль усилитель мощности компоненты аудио электронный домашний выпрямитель фильтр практичный контурный конденсатор линейной платы один способ

Description:
Glass passivated die construction.
Low reverse leakage current.
Perfect for printed circuit board applications.
Plastic material, UL flammability.
This product needs to be used with a transformer and cannot be used directly with AC110V-220V voltage.
In order to use it better, you need to have an electronic foundation.
Specifications:
Item type: Rectifier Filter
Material: Plastic
Color: As Picture

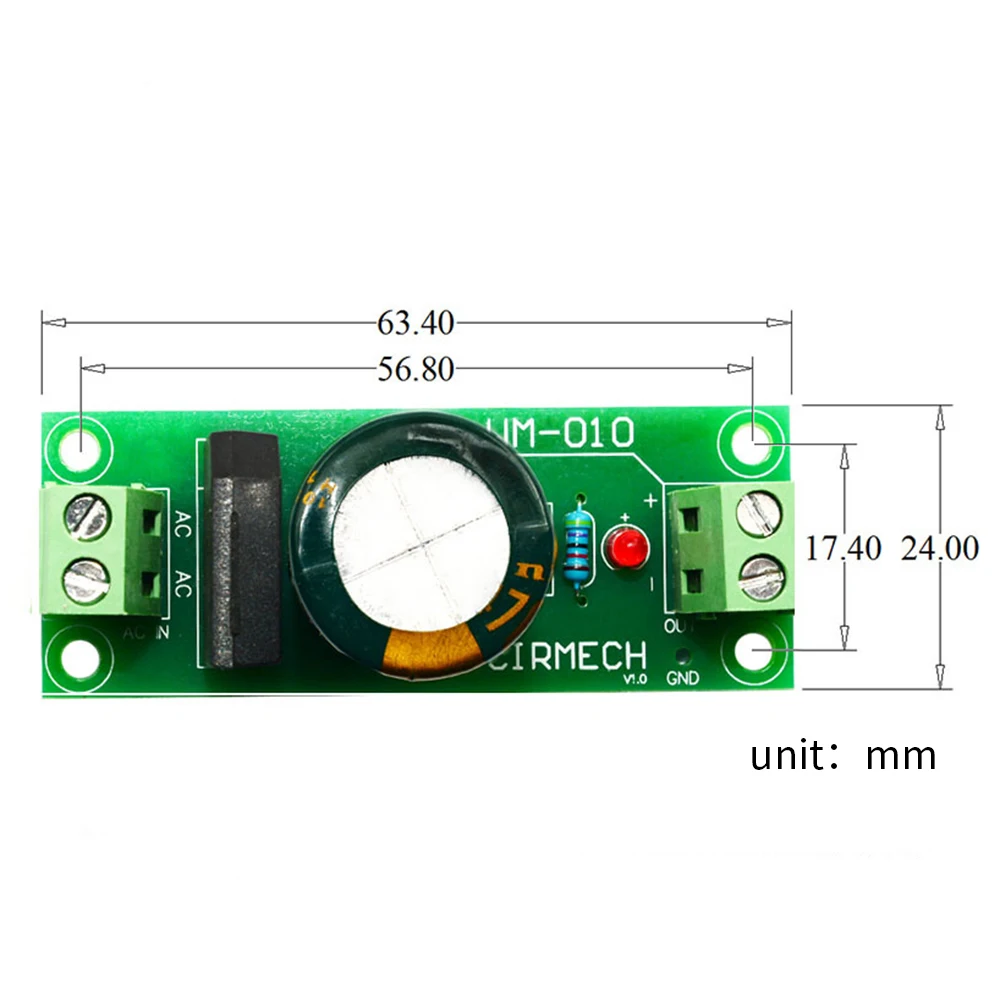

Size: About 63. 4x24x44mm

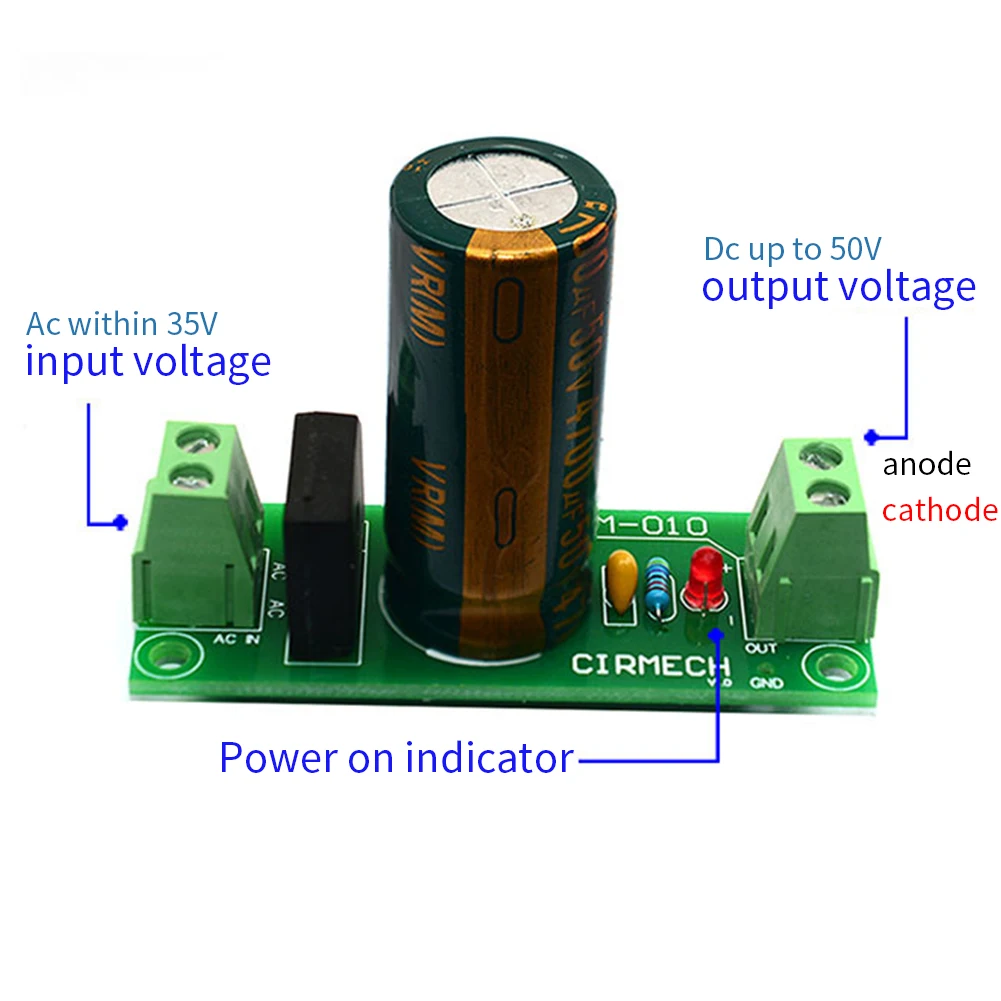

Input Voltage: Less Than 35V
Output Voltage: DC Less Than 50v
Operating Current: Maximum 6A
Rectifying Flat Bridge: Use KBL608
Capacitance: 4700uF/50V (diameter: 18m)
Type: DIY Kit, Finished Product
Package includes:
1x Rectifier Filter
Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
