Прочный измерительный медный легко устанавливаемый переключатель домашний G3/4 дюйма DN20 1.75MPa Датчик расхода расходомер сменный измеритель жидкой воды

Description:
Made of up copper material, environmental-friendly, really sturdy and durable to use.
Lightweight and has compact size, stable performance, low water pressure start, very easy to install and safe to use.
The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
It's maximum water pressure is 1.75MPa and the range of flow is from 2L/min to 45L/min.
Specifications:

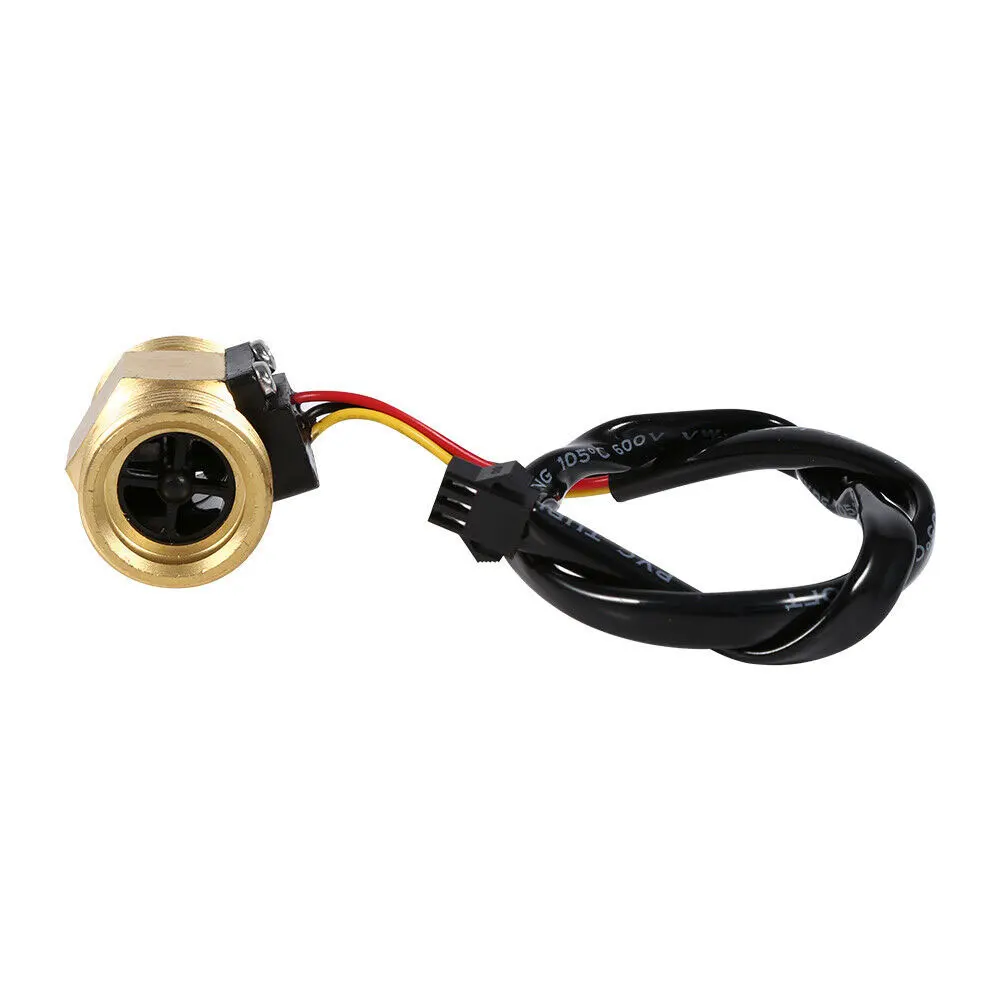

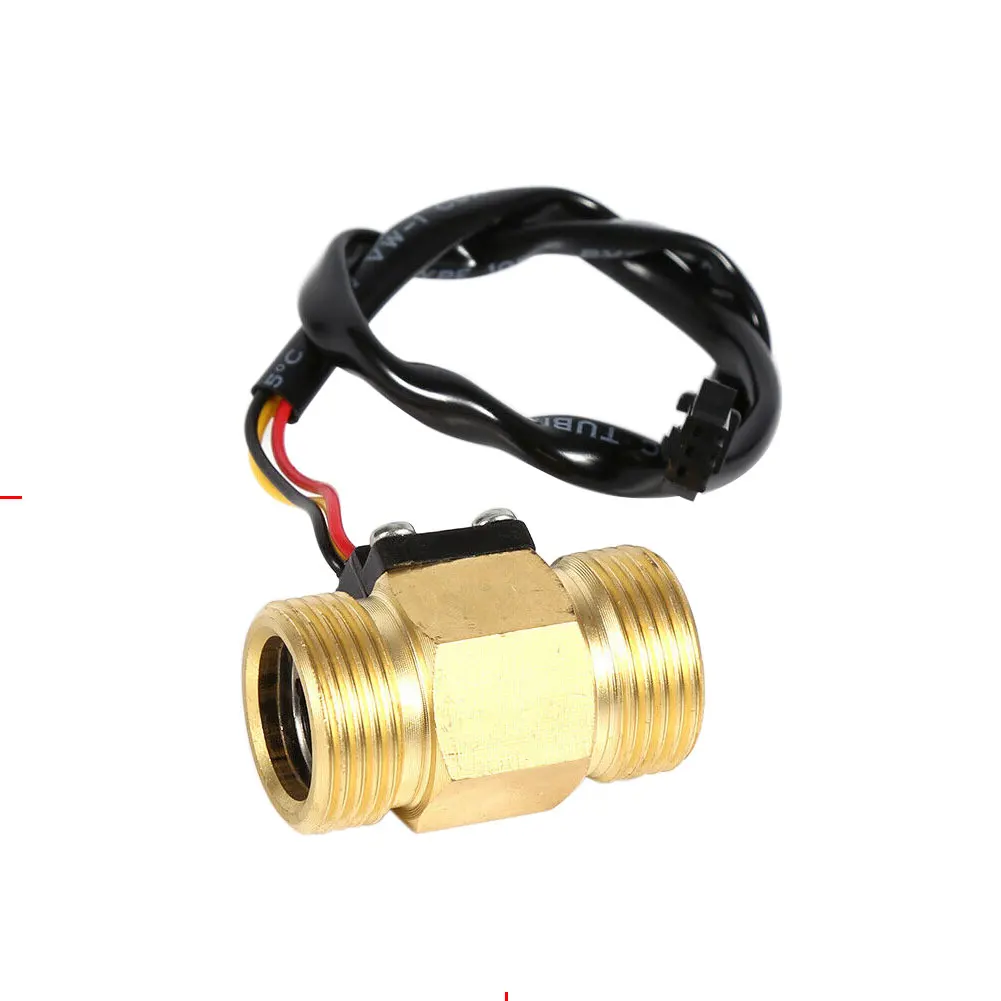

Product name: Flow Sensor
Color: Gold
Material: Copper
Accuracy level: +-10%
Nominal diameter: 26 mm
Working pressure: 1.75 MPa
Working temperature: 60 °C
Water Quality Requirement: ≤60℃
Start Flow Range: 1.5L/min
Flow Range: 2-45L/min
Working Voltage Range: DC4.5-18V
Max Current: 10mA
Insulation resistance:＞100MΩ
Electrical Strength: AC500V, 50Hz
Type: DN20 G3/4(External Thread Diameter)
Copper Switch Length: Approx. 45mm / 1.8inch

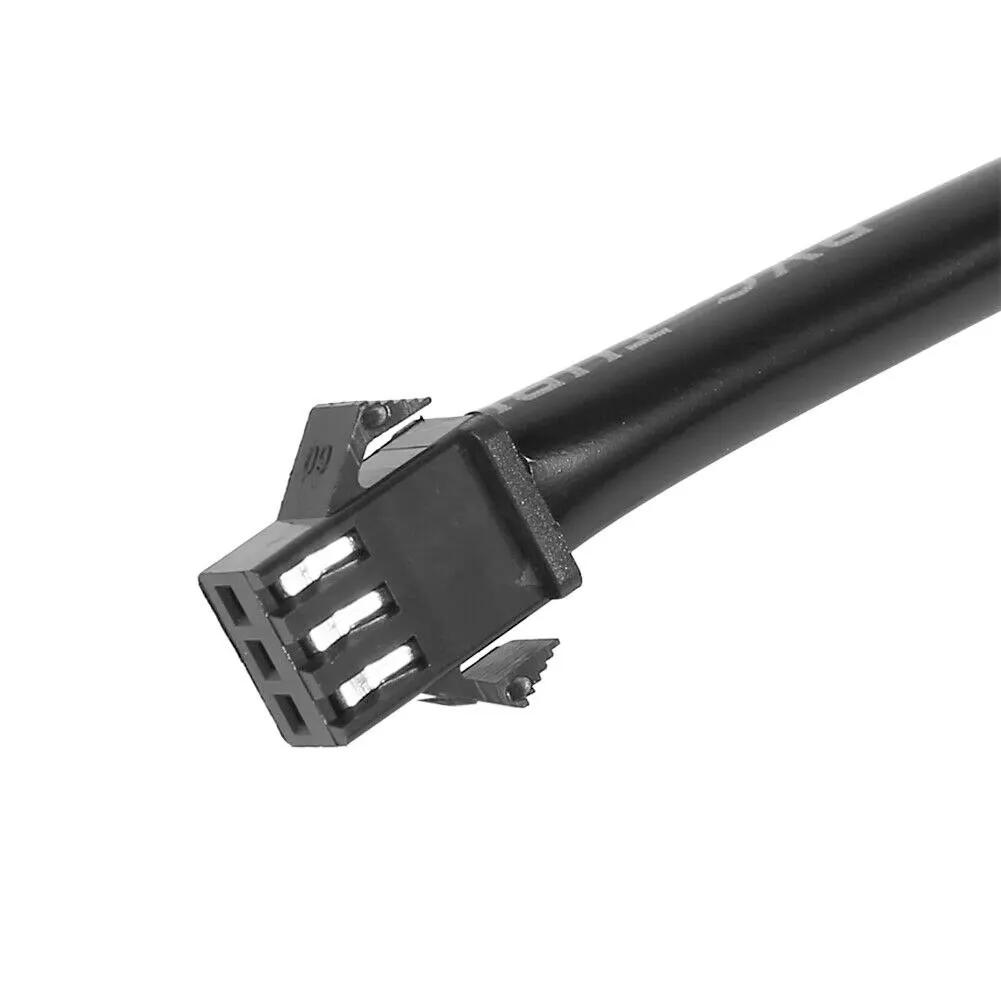

Wire Length: Approx. 35cm / 13.8inch
Package Included:
1PC x Flow Sensor
Note:
Transition: 1cm=10mm=0.39inch
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
