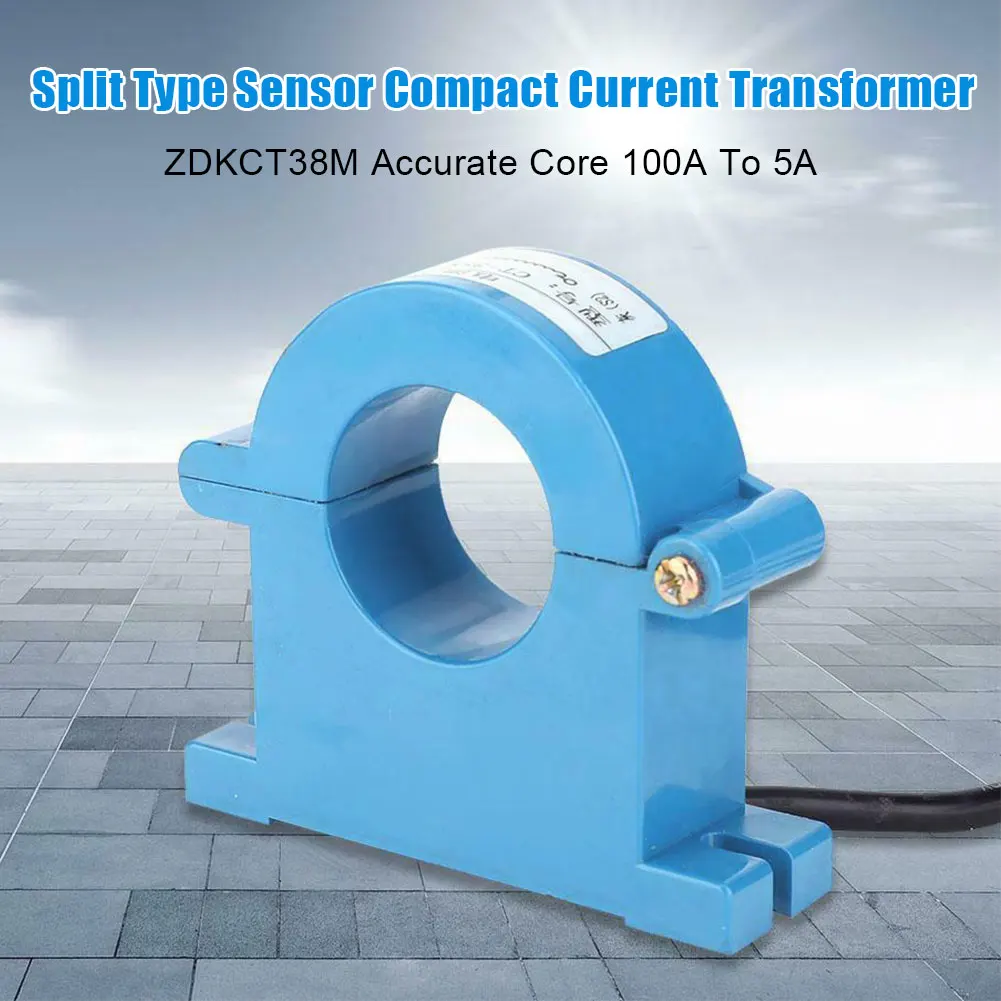

Разъемный сердечник компактный магнитный трансформатор тока точный индукционный цилиндрический датчик остаточный пластик ZDKCT38M 100A до 5A

Feature:
Open and close current transformer, can be installed with power, no need to disconnect, easy to install.
High-conductivity nickel magnetic steel, good environmental adaptability, high magnetic permeability and high stability.
Accurate current transformer, built-in input coil, compact and lightweight.
Often used in electric energy metering, engineering transformation, power distribution cabinets, capacitor cabinets, electric control cabinets, power distribution boxes, etc.
The current transformer can withstand 1.5 times of rated voltage.
Specification:
Item Type:Current Transformer
Rated Input Current: 100A
Rated Output Current: 5A
Nonlinearity: ≤1%
Linear Range: ≤ 1.5 Times Rated
Withstand Voltage: ≥6kV
Power: ≤1.5W
Ambient Temperature: -12 ° C ~ 45 ° C
Winding Form: Single Layer Tight Winding
Magnetic Properties of The Magnet: Iron Core
Core Shape: Cylindrical
Working Frequency: Low Frequency
Installation Method: Sealed
Skeleton Material: Plastic
Package List:
1 x Current Transformer
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
