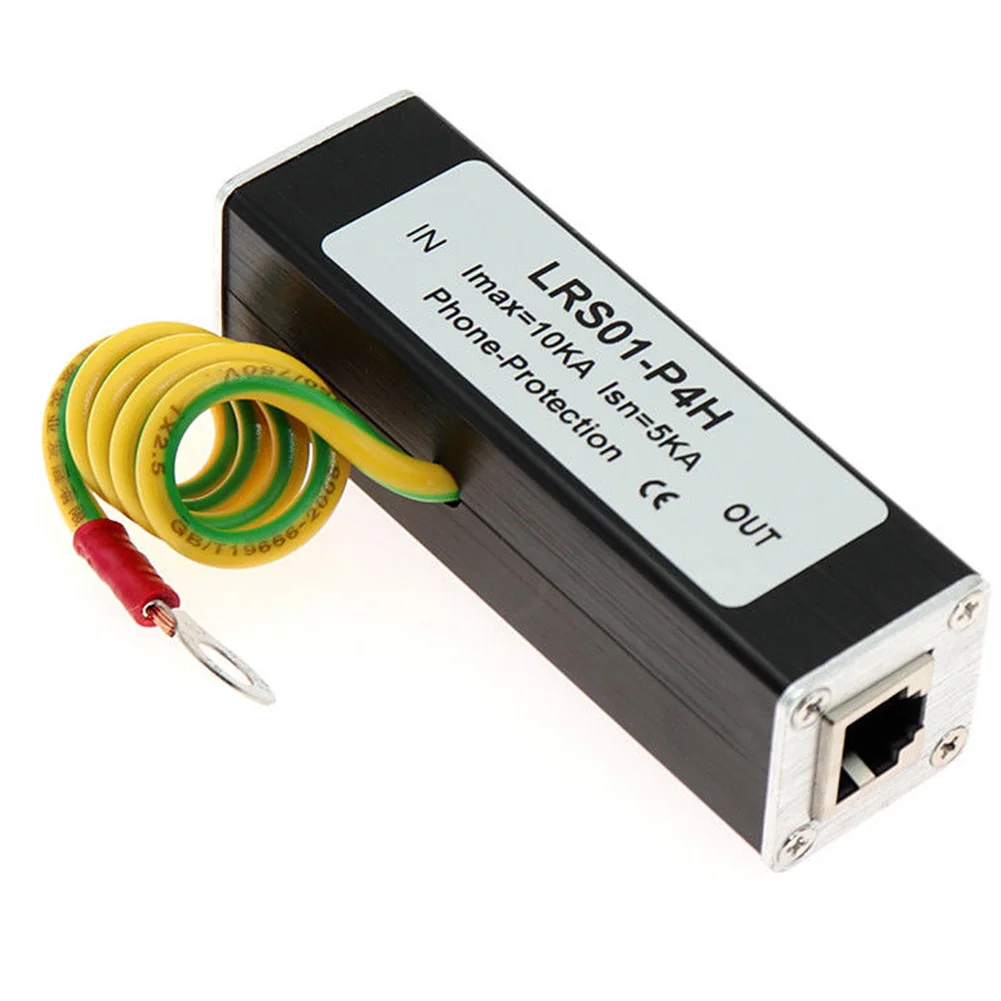

RJ11 Простая установка небольшой Избегайте помех дождевых дней многоцелевой телефонный факс быстрый отклик стабилизатор перенапряжения гром разрядник

Description:
This product is suitable for protecting all kinds of audio signal equipment which using RJ11 connectors.
Protect audio signal equipment such as telephones from damage caused by induced over-voltage, operating over-voltage and electrostatic discharge.
It can be used for MODEM (ISDN, ADSL), DDN line, fax machine, telephone line terminal equipment.
Large flow capacity and fast response, multi-level protection circuit and low residual voltage
The grounding point is treated by special process to avoid signal interference, it is small in size and easy to install.
Specification:
Color: as shown
Rated discharge current: 10kA
Maximum discharge current: 10kA
Suitable for: telephone, fax, etc.
Package included:
1 pc x thunder arrester
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow slight deviation for the measurement data and make sure you do not mind before ordering.
3. Installation and maintenance:
(1)IN stands for the input terminal, OUT stands for the output terminal, please connect the input terminal to the transmission line, and connect the output terminal to the device.
(2)The signal output source device end and the protected device input end, each should be connected with a protector.
(3)The grounding conductor and the protection system grounding busbar should be reliably connected.
(4)The protector does not require special maintenance. If it is damaged sue to high voltage or other causes, please replace it in time.
4. The protection grounding wire should be as short as possible, the inductance is proportional to the length.
5. It is recommended to ground with a three-core ground wire.
