RZ240 тестер для автомобильной пленки, измеритель краски, измерительный инструмент, цифровой дисплей, инструмент, мини-плата, толщиномер покрытия, ЖК-дисплей Fe NF

Description:
This product is a portable coating thickness gauge for fast, accurate and non-destructive measurement of the thickness of
non-magnetic coatings (such as paint and film) on magnetic metal substrates.
The thickness gauge body adopts engineering ABS plastic, light and durable. Fe means magnetic metal panel,
while NF means non-magnetic metal panel.
LCD digital display and data retention for easy and clear reading. It will turn off automatically in 1 minute without any operation.
Press the POWER button to turn on, then press Fe/NF to choose the type of metal and finally press Zero for the unit.
It has the advantages of easy operation, quick measurement, safe use and portability. and two units available and switchable.
This product has had a wide application in manufacturing, metallurgy, chemical industry, inspection and other fields.
Specifications:
Material: ABS
Color: grey

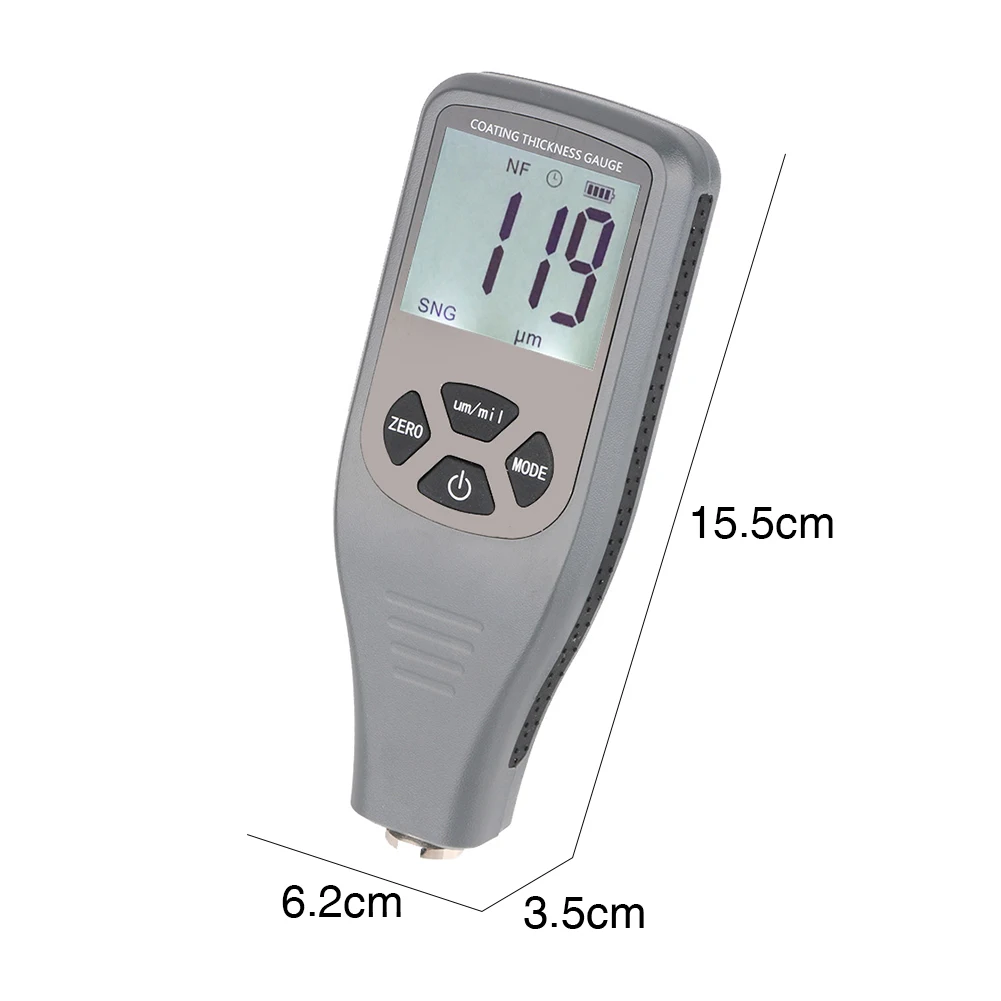

Size: about 15.5x6.2x3.5cm (LxWxH)

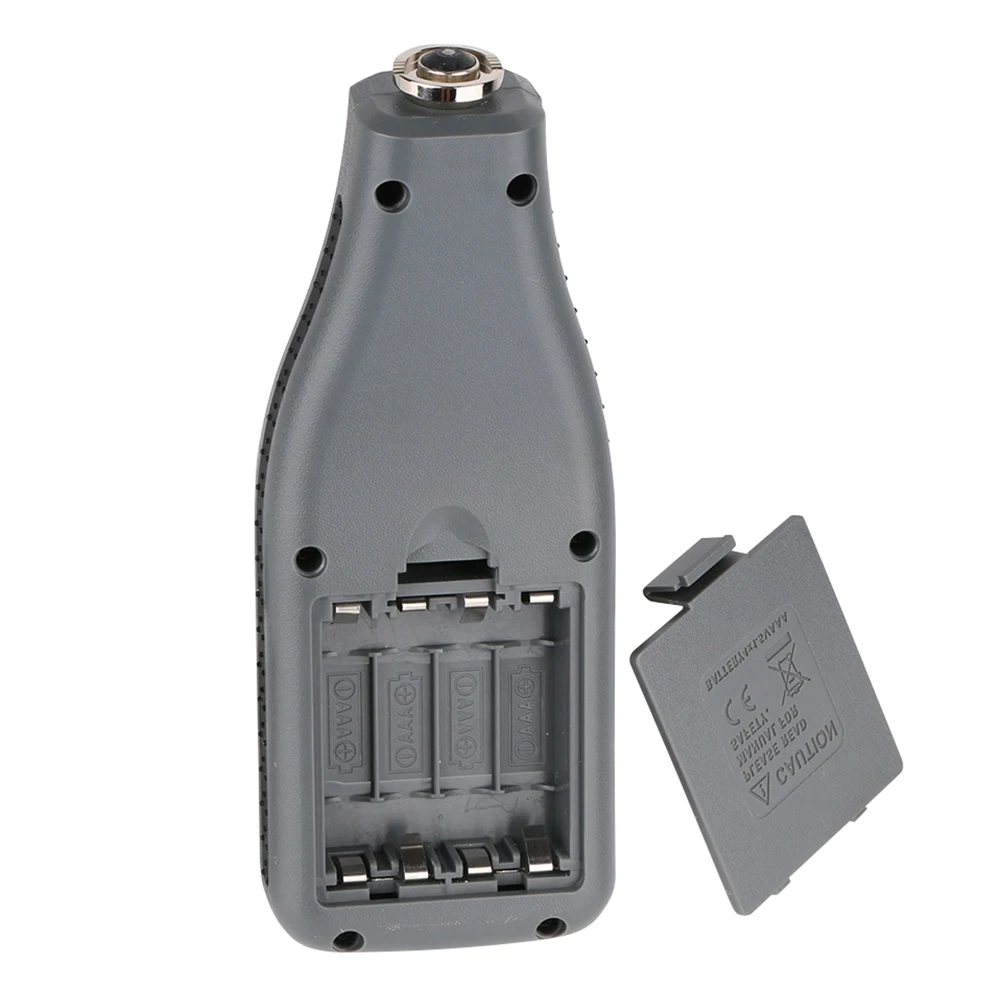

Battery: 4pcs x AAA batteries (not included)
Type: Fe probe (electro-magnetic induction), NF probe (eddy effect)
Minimum substrate thickness:
Fe probe: about 0.5mm
NF probe: about 0.3mm
Unit: um, mil
Operating environment:
Temperature: 0~40 ℃
Humidity: 20%~90% RH
Minimum convex curvature (radius): about 1.5mm
Minimum concave curvature (radius): about 25mm
Minimum measured area (diameter) : about 6mm
Measurement range: 0-1300um
Accuracy: ±3% (+2um)
Package Included:
1pc x coating thickness gauge
1pc x English manual
2pcs x calibration sheets
Note:
1. Due to the light difference, the item's color may be slightly different from the pictures.
2. Please allow slight deviation for the measurement data and make sure you do not mind before ordering.
