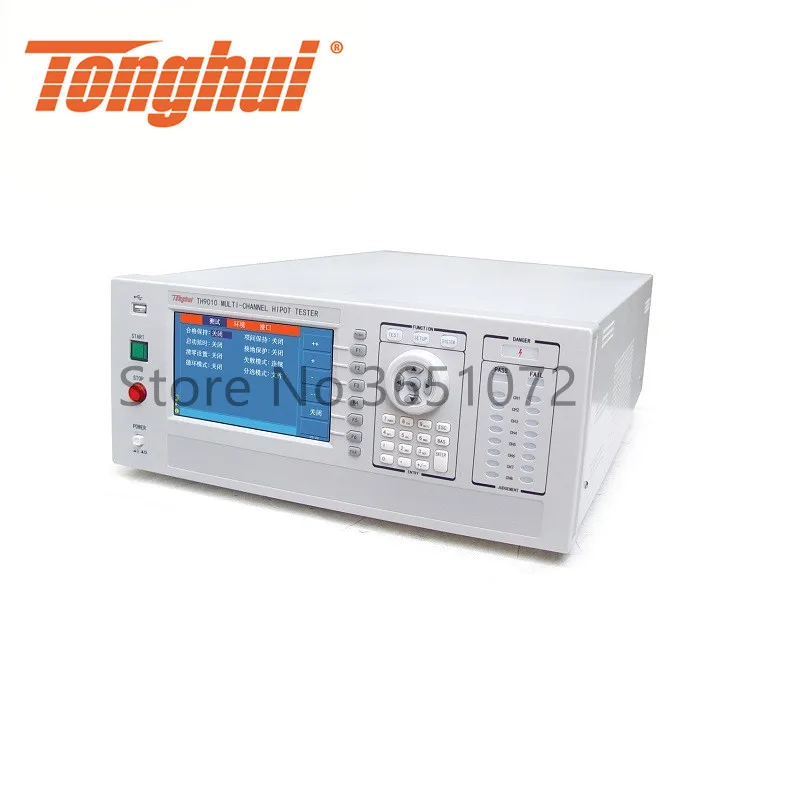

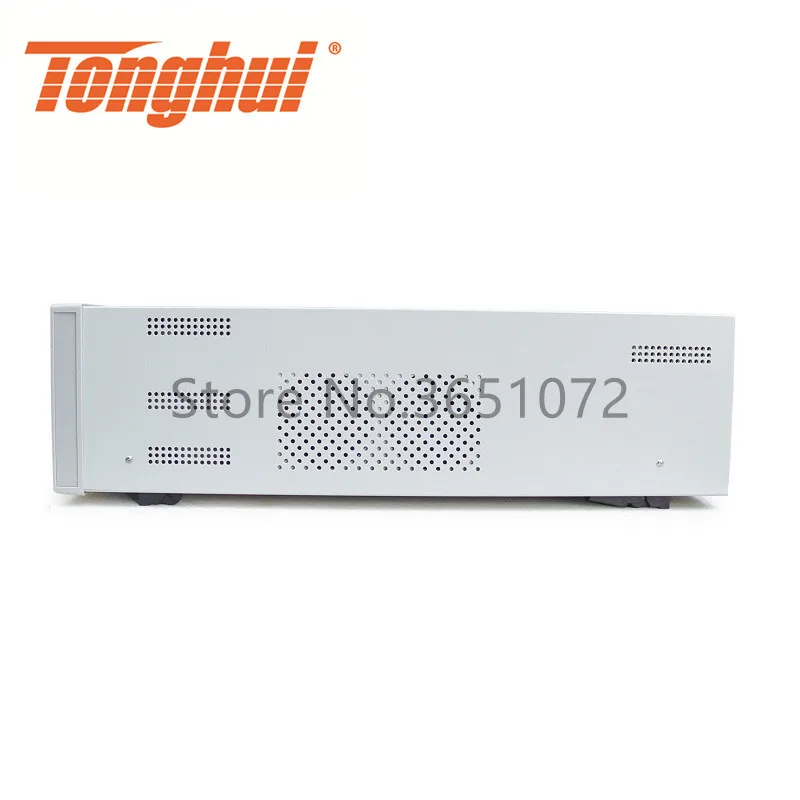

TH9010/TH9010A Parallel 8-channel/4-channel AC/DC Withstanding Voltage Tester Insulation Resistance Tester

Brand Name

TONGHUI

DIY Supplies

Electrical

Dimensions

Dimension(mm): 430(W)x177(H)x630(D)

Model Number

TH9010

Display Type

Digital Only

Operating Temperature

20C-55C

Power Supply

AC

Accuracy Class

±2%

AC Output voltage

0.10kV - 5.00kV +-2%

DC Output voltage

0.10kV - 6.00kV +-2%

AC Current test range

0mA -10.00mA +-(2% reading+5digits)

DC Current test range

0uA -.00mA5 +-(2% reading+d5gits)

Discharge Function

Discharge after test ends (DCW)

Memory

Store 100 test files and each file can hold at most 20 testing steps

Voltage Rising Time

0.1s-999.9s

Waiting time (IR)

0.2s-999.9s

Interface

HANDLER, RS232, USBDRV(PC interface), USBHOST(USB port)

Test time setting (AC/DC)

0.2s-999.9s

Number of units

8 separate channels

Voltage fall time

0.1s-999.9s
