Описание

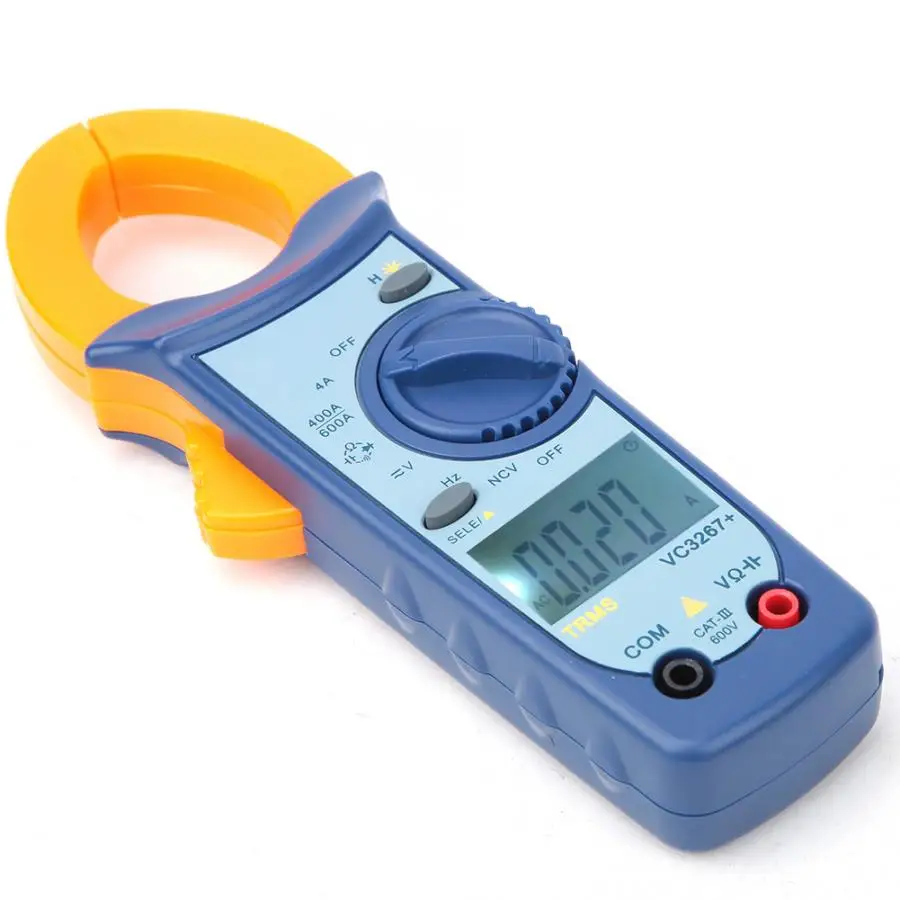

VC3267+ Multi-Functional 3999 Automatic Range Digital Clamp Meter AC DC Multimeter

Feature:

1. This product is a multi-functional clamp meter developed by using full-function automatic range conversion circuit and unique function circuit.
2. Full-featured, can measure AC and DC voltage, AC current, resistance, capacitance, frequency, NCV induction galvanometry, diode/on-off test and so on.
3. LCD high brightness backlight display is used to support 33/4 digital display, and the measurement data is displayed clearly and accurately.
4. The range is 3999. Full-function automatic range prevents the instrument from burning out due to wrong range selection.
5. It supports NCV inductive electrometry and can be used to measure space electric field.
6. True RMS is supported, and the RMS of measured waveform does not need to consider parameters and distortion.
7. With relative value measurement, the interference of lead resistance and signal can be effectively eliminated.
8. With data retention function and low voltage display function, the use method is simple and can be used for a long time.
9. It can be widely used in electrical/electric power testing, refrigeration equipment installation and maintenance, etc.

Specification:

Condition: 100% Brand New
Item Type: Clamp Meter
Material: ABS

Maximum Display	3999 Automatic Polarity	Overload Display	Highest display''OL''	Jaw open	33mm / 1.30in, Diameter: 34mm / 1.34in
Measurement Methods	High Precision A/D Conversion	Power Supply	2 x AAA Battery (Battery Not Included)	Size	183x65x35mm / 7.2x2.6x1.4in
Sampling Rate	About 3 Times / Second	Low Pressure Prompt	Display battery symbol	Weight	142g / 5oz (Battery Not Included)
Working Temperature	0°C-40°C, Relative Humidity <80%RH
Maximum Common Mode Voltage	500V DC/AC True RMS
Storage Ambient Temperature	-10 ° C - 50 ° C, Relative Humidity <85% RH
Features	Range		Resolution	Uncertainty
DC Voltage	DC 400mV-600V		0.1mV	±（0.8%+3d）
AC Voltage	AC 4V-600V		1.0mV	±（1.2%+5d）
Alternating Current	4A		1.0mA	±（2.5%+15d）
	400A/600A		0.1A
Resistance	400Ω-4MΩ		0.1Ω	±（1.0%+3d）
	40MΩ		10KΩ	±（3.0%+3d）
Frequency	10Hz-1MHz		0.01Hz	±（0.2%+3d）
	1MHz-10MHz		0.01MHz	±(0.2%+3d)
Capacitance	40nF-400nF		0.01nF	±（4.0%+15d）
	4μF-4mF		1.0nF	±(2.5%+15d)
Diode And Continuity Test	Open Circuit Voltage>2.2V; On-Off Judgment Resistance: <50Ω, And There Is A Buzzer Prompt
Other Functions	Auto Range, True RMS, Inductive Test NCV, Highlight Backlight, Data Save

Package List:

1 x Clamp Meter (Battery Not Included)

1 x Instruction Manual

1 x Pair of Test Leads

1 x Storage Bag
