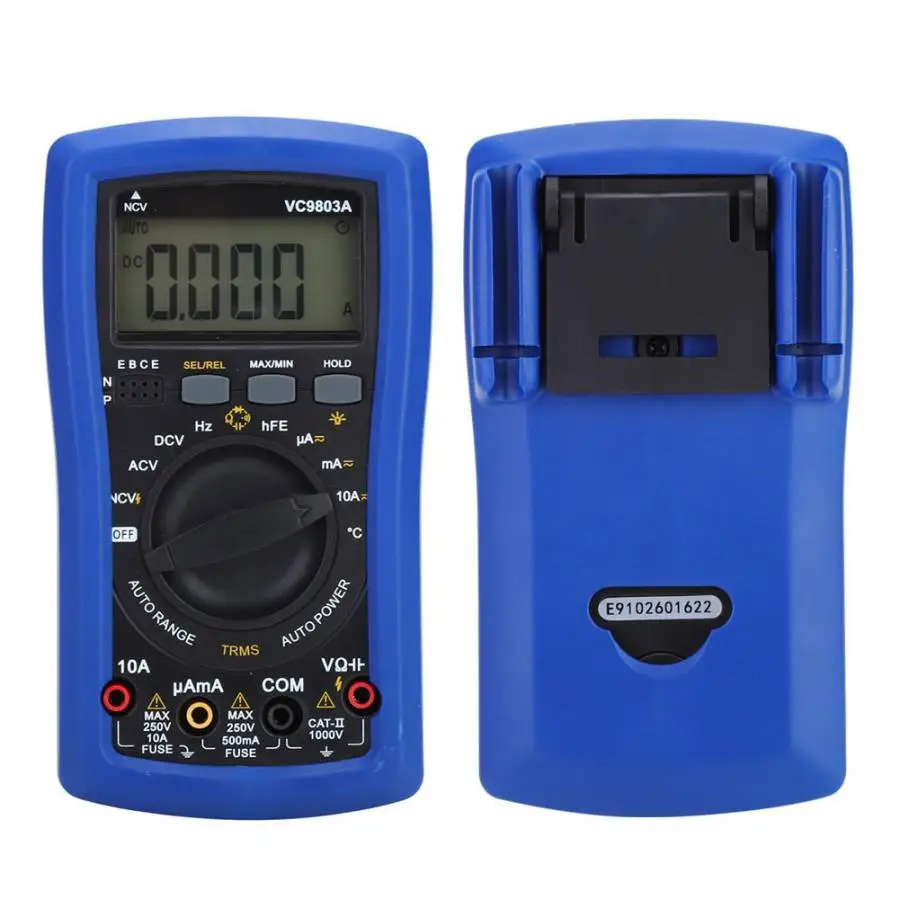

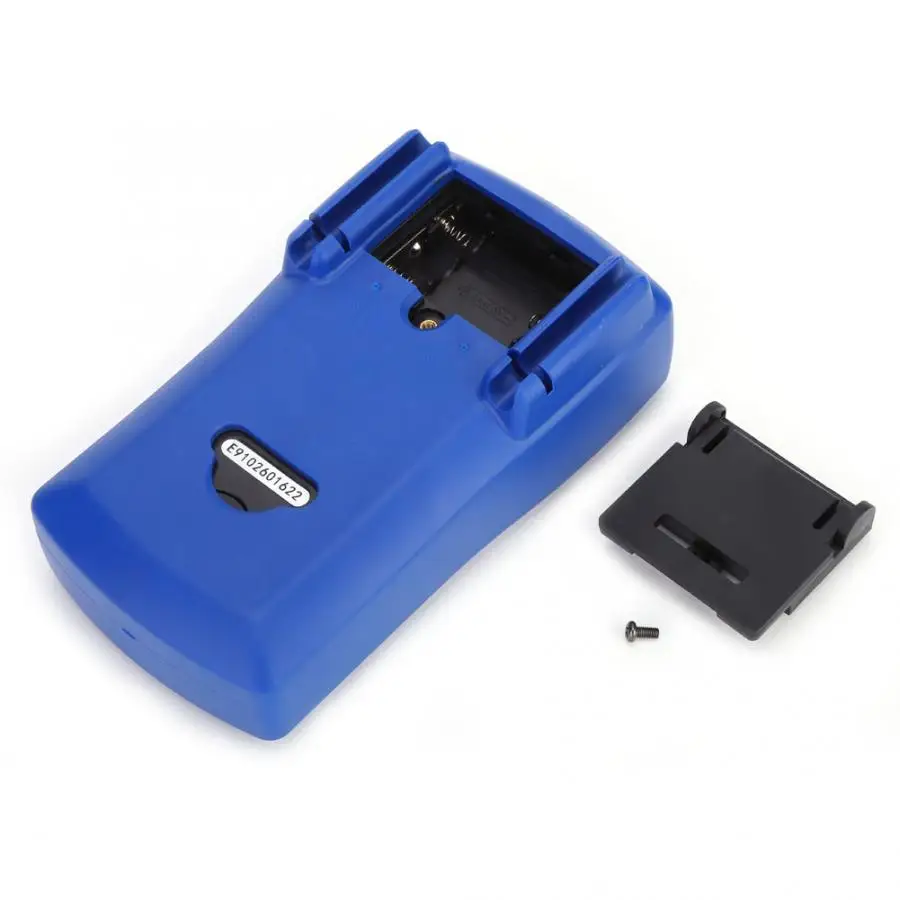

VC9803A Digital Automatic Range Rrue RMS Multimeter AC/DC Voltage/Current Tester

Feature:

1. With high precision AC-DC current, frequency and capacitance measurement with maximum resolution .
2. It has resistance measurement and triode, diode/on/off test and other functions.
3. Fully functional automatic range, prevent the instrument from burning due to wrong range selection.
4. The k-type point temperature probe is used to measure temperature with wide range and fast response speed.
5. It has data hold/maximum/minimum/relative value function, highlight backlight, automatic shutdown function.
6. High precision low noise A/D converter, 2KHz bandwidth true RMS function. Inductive electric NCV (non-contact) field measurement, more fire line discrimination function.

Specification:

Condition: 100% Brand New
Item Type: Multimeter
Material: ABS
Color: As shown in the picture

Maximum Display	3999 Automatic polarity	Overload display	Maximum display "OL"	Static Power	less than 2mA
Measuring Method	High precision A/D conversion	Power supply	3 x AAA(Not included)	Size	155x82x38mm / 6.1x3.2x1.5in
Sample Rate	About 3 times per second	Low voltage display	Display battery symbol	Weight	Approx.320g/11.3oz(including protective case without battery)
Operating ambient temperature	0°C~40°C, relative humidity<80%RH
Storage environment temperature	-10°C~50°C, relative humidity<85%RH
function	Range（VC9803A)		Resolution	uncertainty
DC V	DC 400mV~1000V		0.1mV	±（1.0%+5d）
AC V	AC 4V~750V		1.0mV	±（2.0%+5d）
AC-DC current	400μA/4000μA		0.1μA	±（1.2%+5d）
	40mA/400mA		10μA	±（1.2%+5d）
	4A/10A		1mA	±（1.2%+10d）
Resistance	400Ω~40MΩ		0.1Ω	±（1.0%+5d）
Frequency	10Hz~1MHz		0.001Hz	±（0.5%+3d）
	1MHz~10MHz		0.001MHz	±（1.0%+5d）
Capacitance	4nF~400nF		1pF	±（4.0%+15d）
	400nF~4mF		1μF	±（10%+15d）
Temperature	-20°C~250°C		1°C	±（2.0%+3d）
Diode and on-off test	open circuit voltage>2.2V; On and off judge the resistance: <50Ω，and buzzer
Triode	1b=about 1μA, NPN/PNP 0-1999
Other functions	Automatic range, true RMS value, relative value, inductive fulfillment, highlight backlight, data saving, maximum and minimum value

Package List:

1 x Multimeter

1 x Pair Test Leads

1 x Instruction Manual

1 x Thermocouple
