Описание
 |  |  |
 |  |  |
Security CCTV HD IP NVR 8CH
Features:
support multiple high-definition network camera access; support VGA, HDMI 1080P full HD output simultaneously; supporting web, CMS, center platform management software MYEYE, provide SDK development; supports multiple cloud technology, network penetration, alarm information pushed to your phone and other functions; Support multiple network services (support DHCP, FTP, DNS, DDNS,NTP, UPNP, EMAILI, IP searches, Alarm Center, etc.);
Technical Parameters:
| Model | N7608F | ||
| Main processor | Hi3520D | ||
| System | Operating System | Embedded Linux | |
| System Resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | ||
| Operator | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation | |
| Interface | Preview | 1/4/8/12 | |
| Video standards | PAL(625TVL,50f/s); NTSC(525TVL,60f/s) | ||
| Video compression | H.264(Main Profile) | ||
| Video | Display quality | VGA; HDMI | |
| Playback quality | 8CH:1080P/720P/D1 | ||
| Audio | Decode | 2*1080P/2*960P | |
| Motion detection | Spport | ||
| Audio compression | G.711a | ||
| intercom | Support | ||
| Storage | Recording mode | Manual>Alarm>Video Detection>Continuous | |
| Local Playback | 1/2(1080P);4*（720P);4*（D1） | ||
| Record | Search mode | search by Time/calendar/event/channel | |
| Space Occupation | video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel, 1080P ~40G/ day*channel; audio: 691.2M/ day*channel | ||
| Record Storage | HDD or network | ||
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner | ||
| Interface | Video input (IP) | 8CH:8*1080P/12*960P/8*720P | |
| Video output | 1ch VGA, 1ch HDMI HD output | ||
| Video input (BNC) | N/A | ||
| Audio I/O | 0/0 | ||
| Alarm I/O | 0/0 | ||
| Network interface | 1*RJ45 10M/100M | ||
| PTZ control | Supports 18 kinds of PTZ protocol | ||
| USB interface | 2*USB2.0 port | ||
| Hard disk | 2*SATA(Single maximum support 4T) | ||
| ONVIF | Support | ||
| Power supply | 12V/4A | ||
| Power Consumption | <10W(Without HDD) | ||
| Temperature | 0℃-＋55℃ | ||
| other | Humidity | 10%－90% | |
| Atm | 86kpa－106kpa | ||
| dimension | 300*230*50mm(H)* mm(W) | ||
| weight | 2.5kg | ||

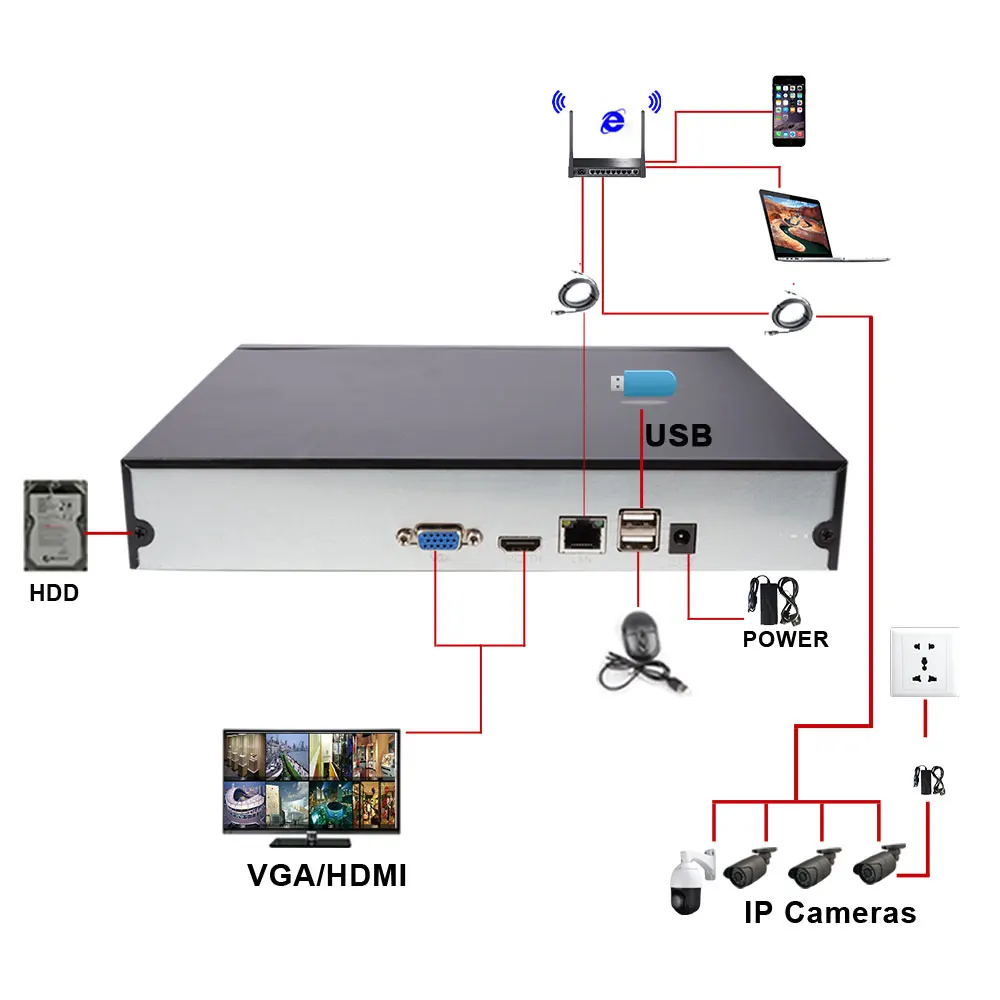

Wiring Example
Package Include:
1 x 8CH NVR
1 x Power Supply
1 x Mouse
1 x Remote Controller
1 x Screw bag for HDD
Характеристики
- Бренд
- Fayele
- Технология
- Сеть
- Разрешение видео
- 3MP / D1 / 4MP / 720 P / 1080 P / 960 P / 5MP
- Формат сжатия
- MPEG-4 / H.264 / H.265
- Размер жёсткого диска
- 3.5'
- Сетевой интерфейс
- RJ45 10/100M
- Входной разъем для видео
- BNC (размах напряжения 1,0, 75 ом)
- Номер модели
- N6008G5
- e- облако p2p
- Есть
- Видеовыход
- 1VGA + 1 микро-hdmi
- жесткий диск интерфейс типа
- SATA
- Аудиовход
- Нет
- Поддержка систем мобильной связи
- Android / IPhone OS
- Тип резервного копирования
- USB-флеш-накопители / Накопитель на жестких дисках
