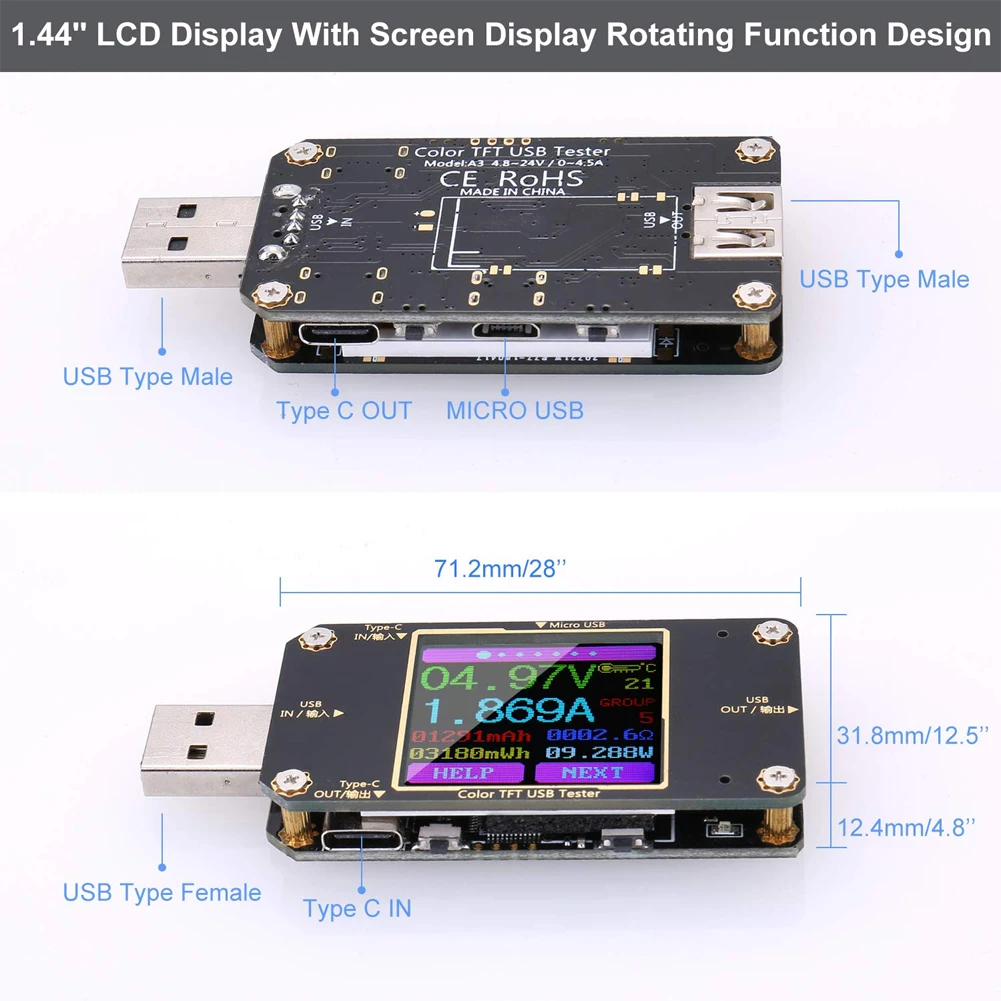

Description:1. 1.44'' LCD display with screen display rotating function design; 4 operating buttons and 5 connected ports.
2. Seven kinds of display interface and other line resistance measurement, test charger, charging treasure, data line, high-accurate measurement of various equipment.
3. Multi-screen interface design, and the entire help menu does not need to read the manual.
4. Support the screen to rotate 360 degrees. Meet any angle reading. The button corresponding to the long button horizontal menu bar can rotate the screen
to meet the needs of various digital devices to insert at any angle and forward reading, making the measurement more convenient.

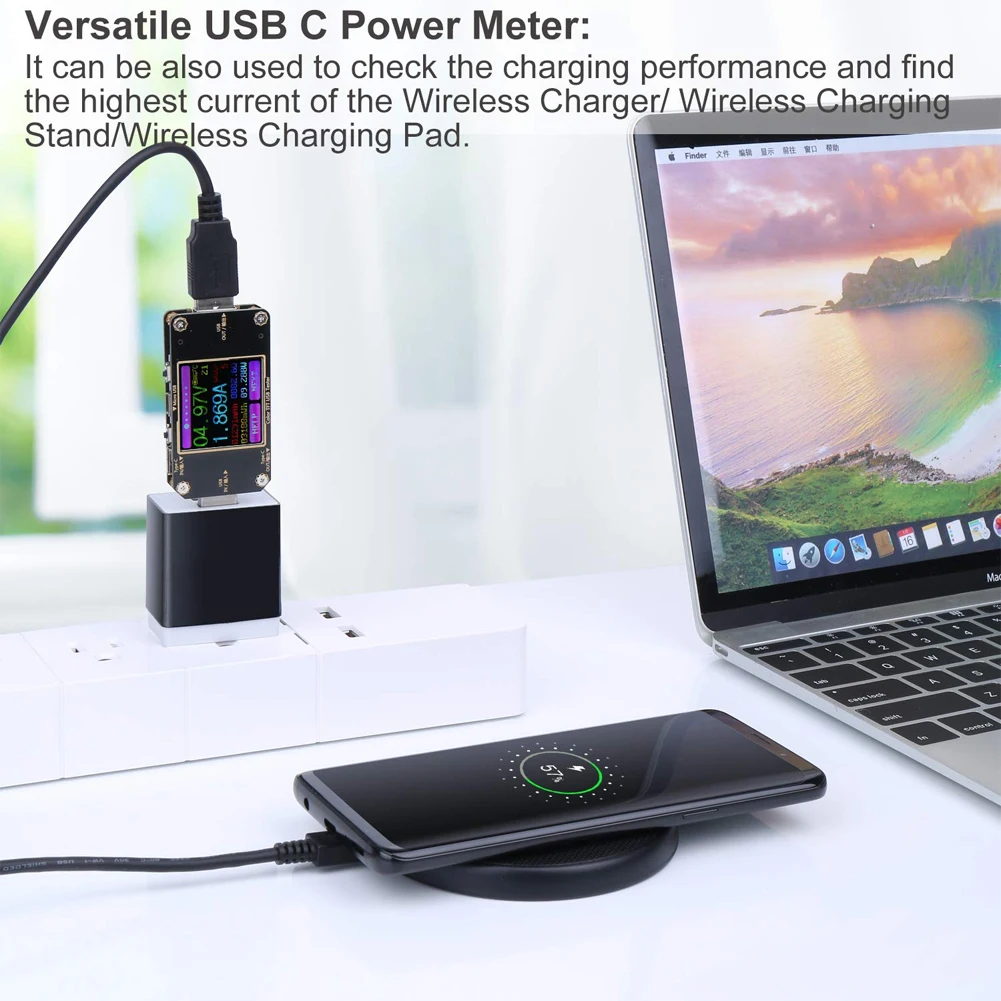

5. Test the charger, can measure various USB chargers, and then insert the output port, adjust the constant current loader for current adjustment to
test the current and voltage data of the charger.
6. Test Type-C/Android data cable, test Type-C data line operation is the same, insert Type-C input port to test Type-C data line.
7. Adjust the load so that the current value displayed when the no-load voltage is reduced by 1V is the maximum overcurrent value of the data line.

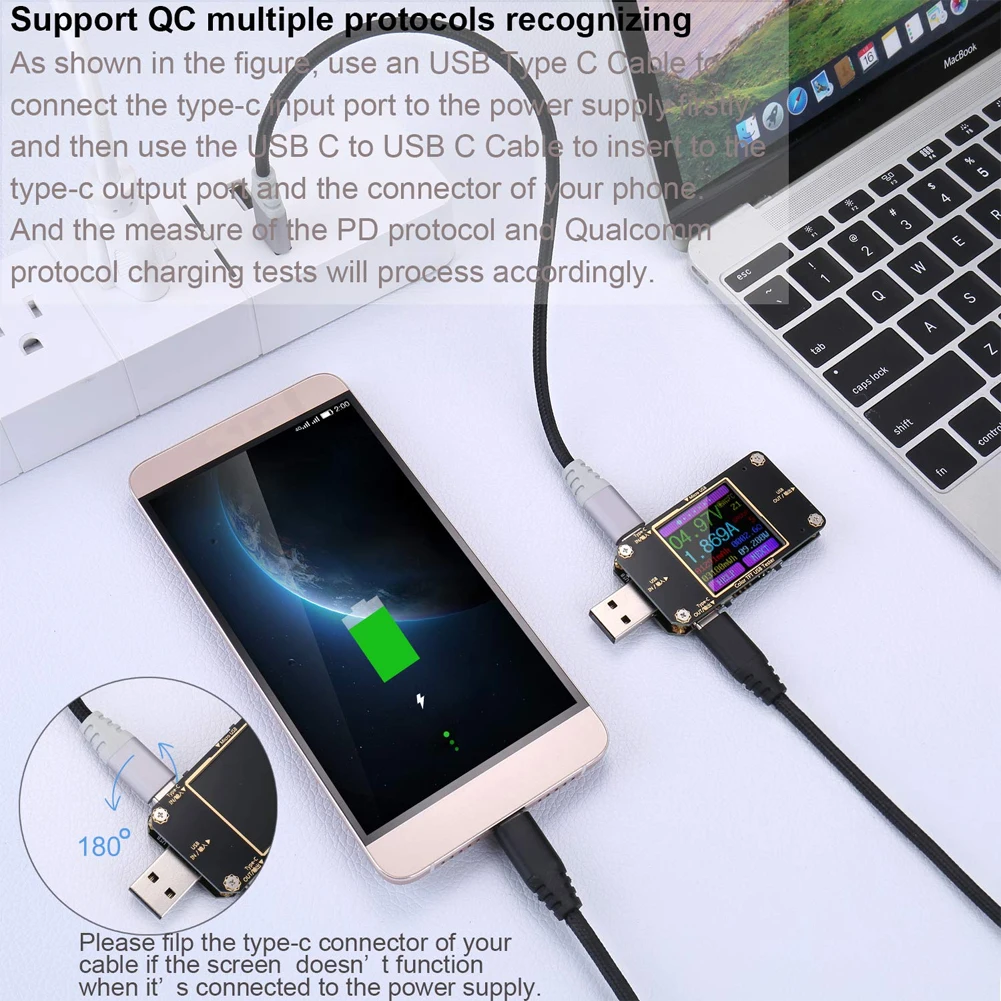

8. A3 color screen gold watch can not only directly test various USB devices, plug and test, online For Android phone/computer via Bluetooth, mobile phone/computer APP online control.
Specification:
Product name: Voltage tester
Model: A3-B
Color: Black
Material: Metal
Input voltage: 4.50-24.00V
Input current: 0-3A
Capacity measurement range: 0-99999mAh
Electricity measurement range: 0-99999mWh
Load impedance measurement range: 1.5Ω-9999.9Ω
Temperature measurement range: -10°C~100°C/0F~200°F
Screen brightness setting: 0-5 total 6 levels
Voltage curve range: 4.5V-24.0V
Display screen: 1.44 inch color LCD
Voltage measurement resolution: 0.01V
Current measurement resolution: 0.001A
Voltage measurement accuracy: ± ( 0.2% +1 words)
Current measurement accuracy: ±( 0.8%+3 words)
Time measurement range: 0-99 hours 59 minutes 59 seconds
Temperature measurement error: ±3°C/±6°F
Delay off time: 0-9 minutes
Current curve range: 0.00A-3.00A
Refresh rate: 2Hz
Size: About 74.5mm x 31.9mm x 9mm
Package included:
1 PC * USB C Voltage tester
Notes:
Transition: 1cm=10mm=0.39inch
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3 cm measuring deviation due to manual measurement.
