ZFX1620 DC9-60V Metal Case DC Motor Speed Controller 20A Forward and Reverse Switch

Features:

1. The speed regulator uses advanced technology, which has the characteristics of high conversion efficiency, wide speed regulation range and stable performance.

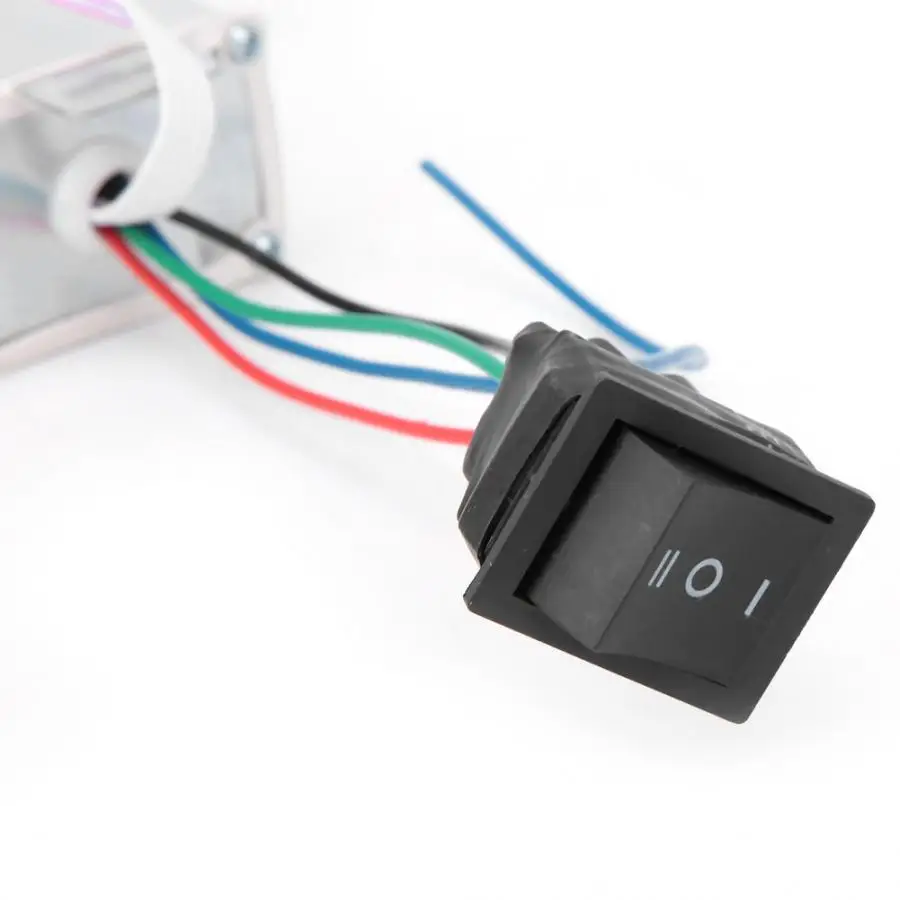

2. Equipped with external potentiometer speed control switch

3. Widely Regulate Range, input voltage: DC12-60V, Continuous current: 10A, current: 20A. Speed Control Type: Current Adjustment

4. The Forward-Stop-Reverse switch is convenient to change the direction of the motor without adjusting the order of the motor lines

5. Metal shell prevents it from easily damaged.

Specification:

Condition: 100% Brand New

Item Type: Motor Speed Controller

Model: ZFX1620

Input Voltage: DC12-60V

Output Voltage: Linear Under Load

Maximum Current: 20A controller

Continuous Current: 10A

Positive and Negative Functions: Forward, Stop, Reverse

Speed Range: 0%--100%

Control Frequency: 15Khz

Speed Control Mode: Potentiometer (with switch)

Speed Control Type: Current Adjustment

Support Motor: DC Brush Motor

Wiring Type: Wire

Product Size (Length x Width x Height): Approx. 90 x 52 x 36mm / 3.5 x 2 x 1.4in

Installation Size: Center Distance 104mm / 4.1in

Product Weight: 115 g / 4.1 oz(approx.)

Package List:

1 x Motor Speed Controller

Note:

1. The input voltage should be equal to the rated voltage of the motor. You cannot input 220V household power.

2. The input must distinguish between positive and negative polarity.

3. The motor can be connected without negative. When the running direction is inconsistent with the expected direction, the direction can be changed by adjusting the motor wire sequence.
